Mini-Project 02 - Making Backyards Affordable for All

Author

socoyjonathan

Published On: 2025-12-19

Introduction

Housing affordability is one of the greatest challenges facing New York City today. As an first-generation immigrant in American, my dream of owning a home and even renting an affordable apartment becomes increasingly more challenging. In this mini-project, I intend to demonstrate my skills at Data Integration/Data Visualization/Metric Creation in an analysis of Official Statistics/Economic Data/Census Data data. From this data exploration and analysis, I will use data to lobby politicians in support of a federal YIMBY-incentive program and push for opportunities for new Americans to obtain affordable housing. Using data analysis, I will locate districts that would benefit from adopting YIMBY-type policies and whose reelection prospects would be improved by sponsoring this type of bill.

Data Acquisition

Task 1: Data Import

As a short remark, this project is eerily similar to my Final Project and I am excited to embark in this preliminary data analysis. Using the American Community Survey (ACS) and the tidycensus package, I use provided code to download relevant data for the range 2019-2023:

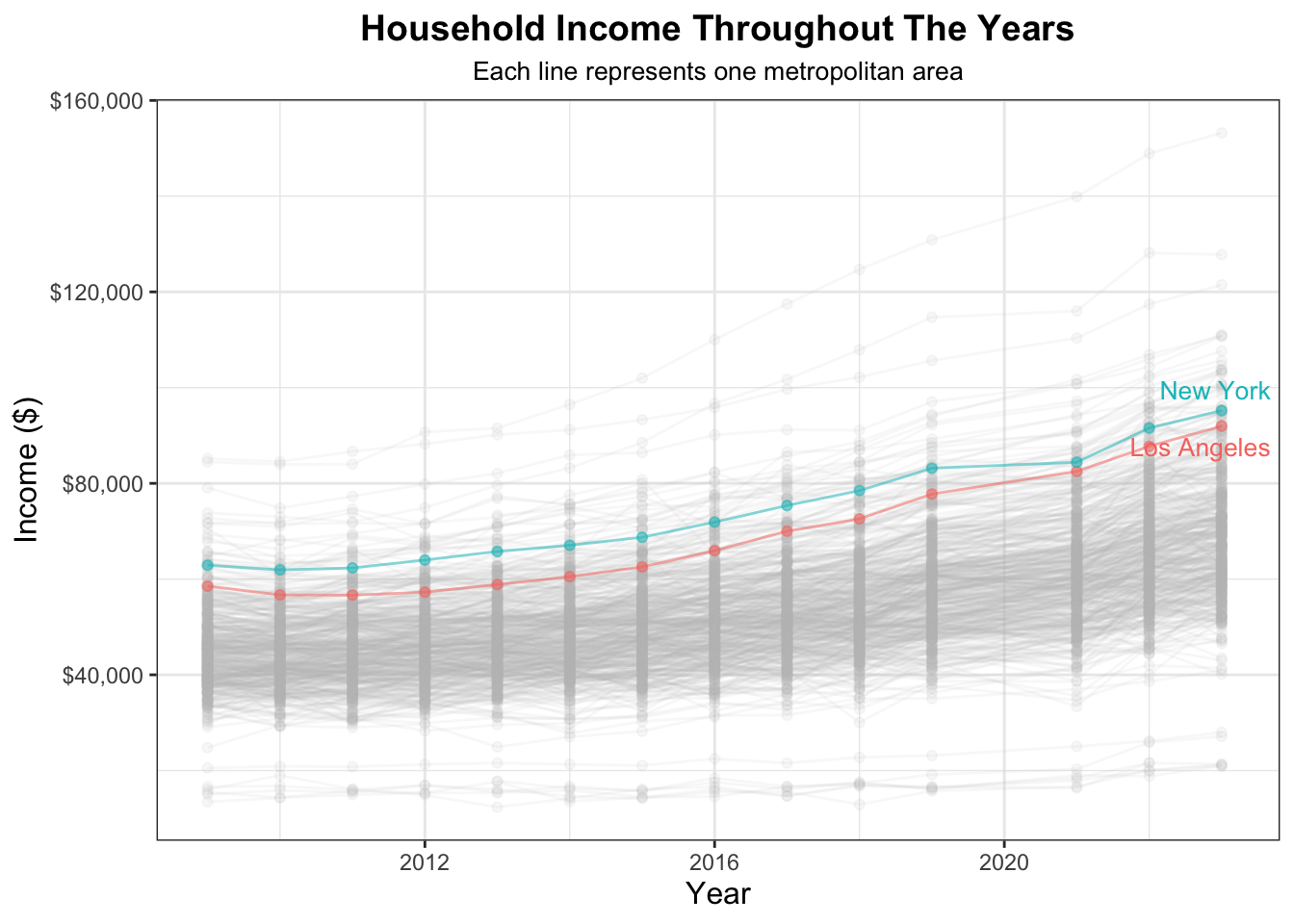

Household income

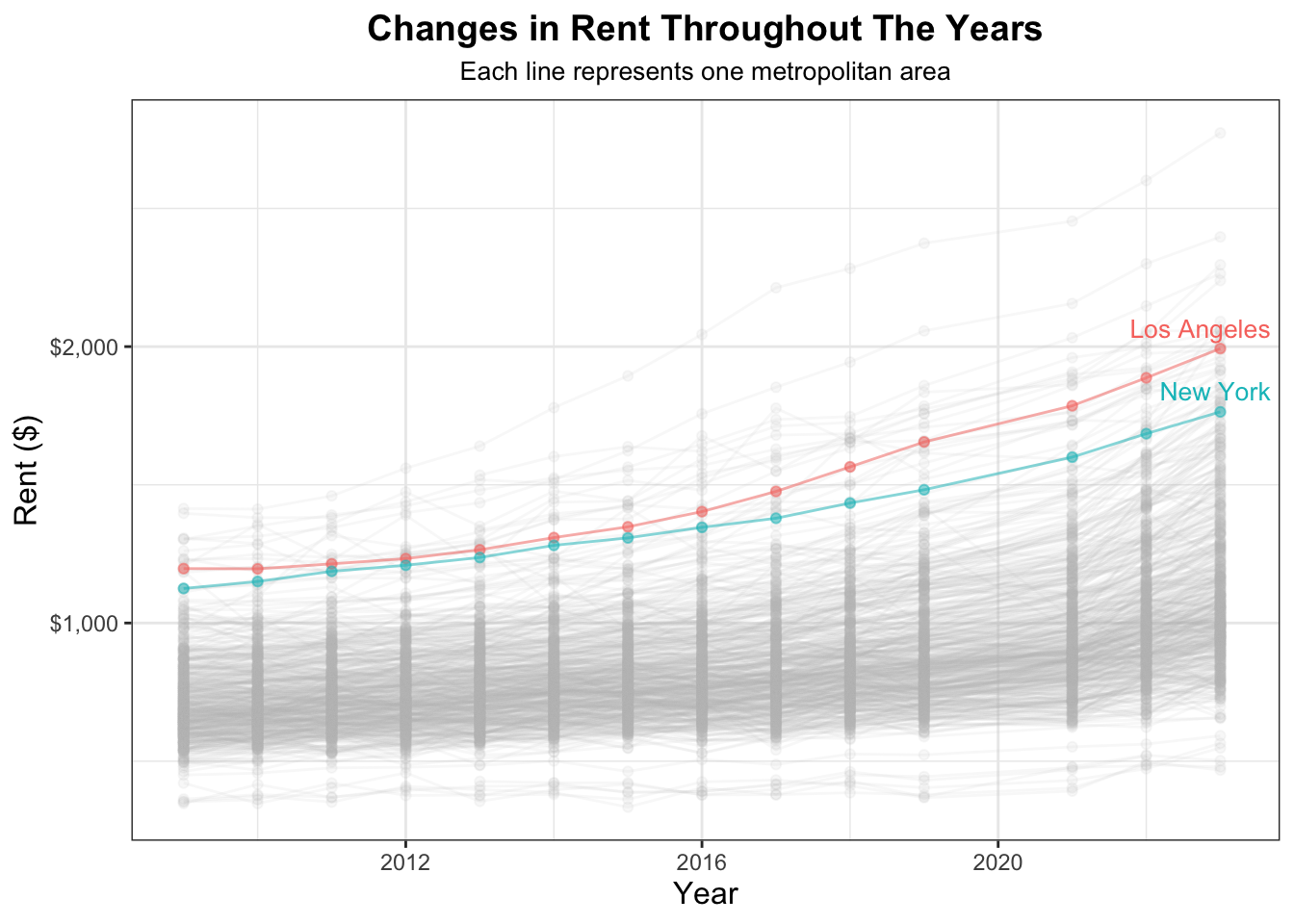

Monthly rent
Total population

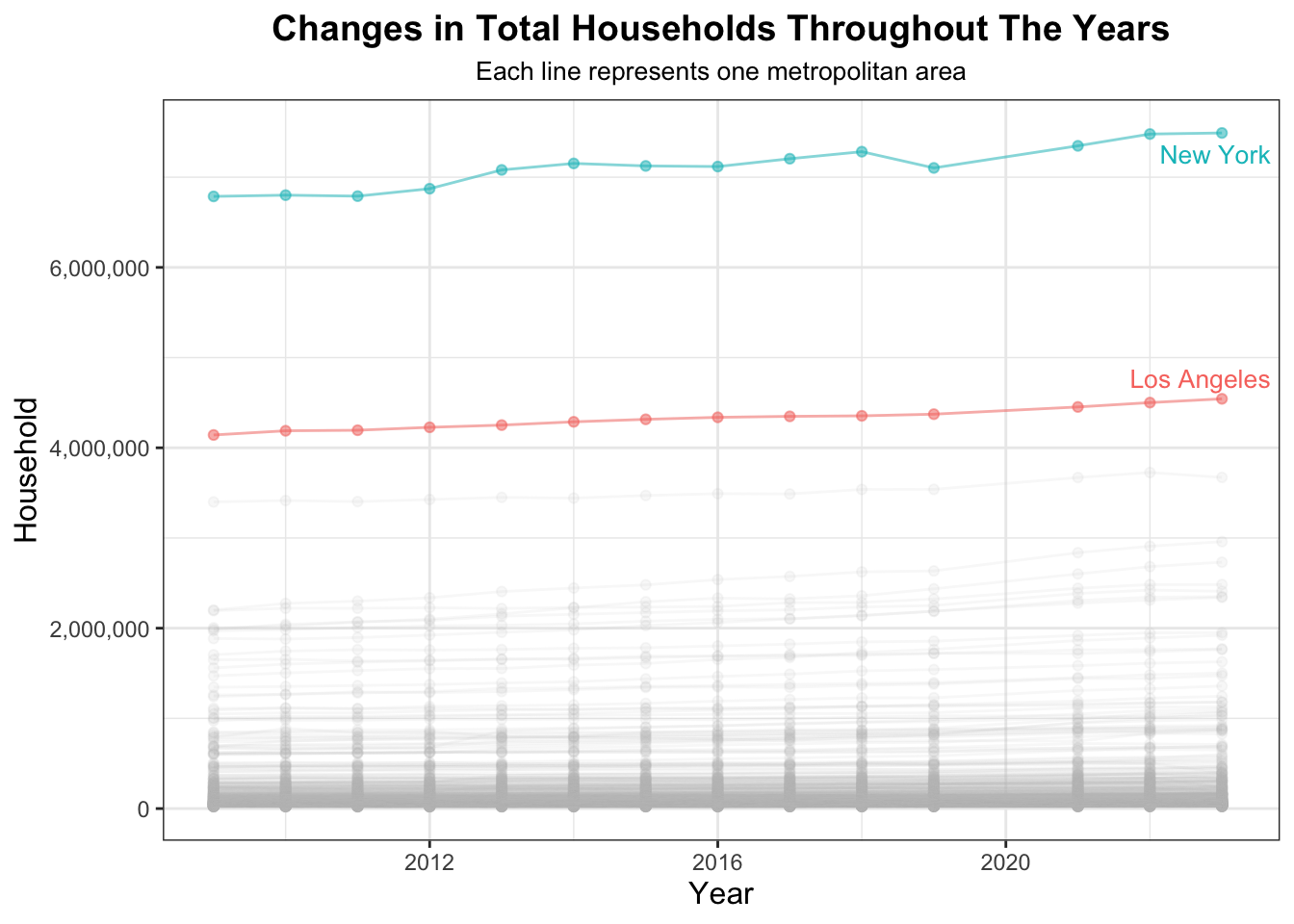

Total number of households

R Code

if(!dir.exists(file.path("data", "mp02"))){
    dir.create(file.path("data", "mp02"), showWarnings=FALSE, recursive=TRUE)
}

if (!require("tidyverse")) install.packages("tidyverse")
if (!require("styler")) install.packages("styler")
if (!require("glue")) install.packages("glue")
if (!require("gt")) install.packages("gt")
if (!require("ggrepel")) install.packages("ggrepel")
if (!require("gghighlight")) install.packages("gghighlight")
if (!require("DT")) install.packages("DT")
if (!require("scales")) install.packages("scales")
if (!require("knitr")) install.packages("knitr")

library <- function(pkg){
    ## Mask base::library() to automatically install packages if needed
    ## Masking is important here so downlit picks up packages and links
    ## to documentation
    pkg <- as.character(substitute(pkg))
    options(repos = c(CRAN = "https://cloud.r-project.org"))
    if(!require(pkg, character.only=TRUE, quietly=TRUE)) install.packages(pkg)
    stopifnot(require(pkg, character.only=TRUE, quietly=TRUE))
}

library(tidyverse)
library(glue)
library(readxl)
library(tidycensus)
library(gghighlight)
library(ggrepel)
library(httr2)
library(rvest)
library(gt)
library(DT)
library(scales)
library(knitr)
library(htmltools)
library(stringr)

tags$style(HTML("
  h3 { text-align: center; margin-bottom: 1em; }
  h4 { margin-top: 1.5em; color: #007bff; }
  .tabset > h4 {
    border-bottom: 2px solid #007bff;
    padding-bottom: 0.3em;
  }
  table.dataTable.compact thead th {
    background-color: #007bff;
    color: white;
  }
"))

R Code

get_acs_all_years <- function(variable, geography="cbsa",
                              start_year=2009, end_year=2023){
    fname <- glue("{variable}_{geography}_{start_year}_{end_year}.csv")
    fname <- file.path("data", "mp02", fname)

    if(!file.exists(fname)){
        YEARS <- seq(start_year, end_year)
        YEARS <- YEARS[YEARS != 2020] # Drop 2020 - No survey (covid)

        ALL_DATA <- map(YEARS, function(yy){
            tidycensus::get_acs(geography, variable, year=yy, survey="acs1") |>
                mutate(year=yy) |>
                select(-moe, -variable) |>
                rename(!!variable := estimate)
        }) |> bind_rows()

        write_csv(ALL_DATA, fname)
    }

    read_csv(fname, show_col_types=FALSE)
}

# Format column titles
format_titles <- function(df) {
  colnames(df) <- str_replace_all(colnames(df), "_", " ") |> str_to_title()
  df
}

# Define a universal DT style
show_table <- function(df, n = 10) {
  datatable(
    df |> head(n),
    options = list(
      dom = 'tip',
      pageLength = n,
      autoWidth = TRUE,
      columnDefs = list(list(className = 'dt-center', targets = "_all"))
    ),
    class = 'compact stripe hover',
    rownames = FALSE
  )
}


# Household income (12 month)
INCOME <- get_acs_all_years("B19013_001") |>
    rename(household_income = B19013_001)

INCOME <- INCOME |>
  rename(CBSA = GEOID)



# Monthly rent
RENT <- get_acs_all_years("B25064_001") |>
    rename(monthly_rent = B25064_001)

RENT <- RENT |>
  rename(CBSA = GEOID)


# Total population
POPULATION <- get_acs_all_years("B01003_001") |>
    rename(population = B01003_001)

POPULATION <- POPULATION|>
  rename(CBSA = GEOID)

# Total number of households
HOUSEHOLDS <- get_acs_all_years("B11001_001") |>
    rename(households = B11001_001)

# rename CBSAs
HOUSEHOLDS <- HOUSEHOLDS|>
  rename(CBSA = GEOID)


# Dashboard Tabs
browsable(
  tagList(
    tags$h3("Economic Indicators by Metro Area"),

    tags$div(
      class = "tabset",

      tags$h4("Income"),
      show_table(INCOME |>
                   mutate(household_income = dollar(household_income)) |>
                   format_titles()
      ),

      tags$h4("Rent"),
      show_table(RENT |>
                   mutate(monthly_rent = dollar(monthly_rent)) |>
                   format_titles()
      ),

      tags$h4("Population"),
      show_table(POPULATION |>
                   mutate(population = comma(population)) |>
                   format_titles()
      ),

      tags$h4("Households"),
      show_table(HOUSEHOLDS |>
                   mutate(households = comma(households)) |>
                   format_titles()
      )
    )
  )
)

Economic Indicators by Metro Area

Income

Rent

Population

Households

Along with:

Number of new housing units built each year

R Code

get_building_permits <- function(start_year = 2009, end_year = 2023){
    fname <- glue("housing_units_{start_year}_{end_year}.csv")
    fname <- file.path("data", "mp02", fname)

    if(!file.exists(fname)){
        HISTORICAL_YEARS <- seq(start_year, 2018)

        HISTORICAL_DATA <- map(HISTORICAL_YEARS, function(yy){
            historical_url <- glue("https://www.census.gov/construction/bps/txt/tb3u{yy}.txt")

            LINES <- readLines(historical_url)[-c(1:11)]

            CBSA_LINES <- str_detect(LINES, "^[[:digit:]]")
            CBSA <- as.integer(str_sub(LINES[CBSA_LINES], 5, 10))

            PERMIT_LINES <- str_detect(str_sub(LINES, 48, 53), "[[:digit:]]")
            PERMITS <- as.integer(str_sub(LINES[PERMIT_LINES], 48, 53))

            data_frame(CBSA = CBSA,
                       new_housing_units_permitted = PERMITS,
                       year = yy)
        }) |> bind_rows()

        CURRENT_YEARS <- seq(2019, end_year)

        CURRENT_DATA <- map(CURRENT_YEARS, function(yy){
            current_url <- glue("https://www.census.gov/construction/bps/xls/msaannual_{yy}99.xls")

            temp <- tempfile()

            download.file(current_url, destfile = temp, mode="wb")

            fallback <- function(.f1, .f2){
                function(...){
                    tryCatch(.f1(...),
                             error=function(e) .f2(...))
                }
            }

            reader <- fallback(read_xlsx, read_xls)

            reader(temp, skip=5) |>
                na.omit() |>
                select(CBSA, Total) |>
                mutate(year = yy) |>
                rename(new_housing_units_permitted = Total)
        }) |> bind_rows()

        ALL_DATA <- rbind(HISTORICAL_DATA, CURRENT_DATA)

        write_csv(ALL_DATA, fname)

    }

    read_csv(fname, show_col_types=FALSE)
}

PERMITS <- get_building_permits()

PERMITS |>
  format_titles() |>
  head(n = 5) |>
  datatable(options = list(searching = FALSE, info = FALSE))

We will be working at the level of Core-Based Statistical Areas or CBSAs, metropolitan (or micropolitan) area surrounding a central town and we will require income estimates from the Bureau of Labor Statistics (BLS) records data.

R Code

get_bls_industry_codes <- function(){
    fname <- fname <- file.path("data", "mp02", "bls_industry_codes.csv")

    if(!file.exists(fname)){

        resp <- request("https://www.bls.gov") |>
            req_url_path("cew", "classifications", "industry", "industry-titles.htm") |>
            req_headers(`User-Agent` = "Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:143.0) Gecko/20100101 Firefox/143.0") |>
            req_error(is_error = \(resp) FALSE) |>
            req_perform()

        resp_check_status(resp)

        naics_table <- resp_body_html(resp) |>
            html_element("#naics_titles") |>
            html_table() |>
            mutate(title = str_trim(str_remove(str_remove(`Industry Title`, Code), "NAICS"))) |>
            select(-`Industry Title`) |>
            mutate(depth = if_else(nchar(Code) <= 5, nchar(Code) - 1, NA)) |>
            filter(!is.na(depth))

        naics_table <- naics_table |>
            filter(depth == 4) |>
            rename(level4_title=title) |>
            mutate(level1_code = str_sub(Code, end=2),
                   level2_code = str_sub(Code, end=3),
                   level3_code = str_sub(Code, end=4)) |>
            left_join(naics_table, join_by(level1_code == Code)) |>
            rename(level1_title=title) |>
            left_join(naics_table, join_by(level2_code == Code)) |>
            rename(level2_title=title) |>
            left_join(naics_table, join_by(level3_code == Code)) |>
            rename(level3_title=title) |>
            select(-starts_with("depth")) |>
            rename(level4_code = Code) |>
            select(level1_title, level2_title, level3_title, level4_title,
                   level1_code,  level2_code,  level3_code,  level4_code)

        write_csv(naics_table, fname)
    }

    read_csv(fname, show_col_types=FALSE)

}

INDUSTRY_CODES <- get_bls_industry_codes()

INDUSTRY_CODES |>
  format_titles() |>
  head(n = 5) |>
  datatable(options = list(searching = FALSE, info = FALSE))

Along with the BLS Quarterly Census of Employment and Wages (QCEW) data:

R Code

library(httr2)
library(rvest)
get_bls_qcew_annual_averages <- function(start_year=2009, end_year=2023){
    fname <- glue("bls_qcew_{start_year}_{end_year}.csv.gz")
    fname <- file.path("data", "mp02", fname)

    YEARS <- seq(start_year, end_year)
    YEARS <- YEARS[YEARS != 2020] # Drop Covid year to match ACS

    if(!file.exists(fname)){
        ALL_DATA <- map(YEARS, .progress=TRUE, possibly(function(yy){
            fname_inner <- file.path("data", "mp02", glue("{yy}_qcew_annual_singlefile.zip"))

            if(!file.exists(fname_inner)){
                request("https://www.bls.gov") |>
                    req_url_path("cew", "data", "files", yy, "csv",
                                 glue("{yy}_annual_singlefile.zip")) |>
                    req_headers(`User-Agent` = "Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:143.0) Gecko/20100101 Firefox/143.0") |>
                    req_retry(max_tries=5) |>
                    req_perform(fname_inner)
            }

            if(file.info(fname_inner)$size < 755e5){
                warning(sQuote(fname_inner), "appears corrupted. Please delete and retry this step.")
            }

            read_csv(fname_inner,
                     show_col_types=FALSE) |>
                mutate(YEAR = yy) |>
                select(area_fips,
                       industry_code,
                       annual_avg_emplvl,
                       total_annual_wages,
                       YEAR) |>
                filter(nchar(industry_code) <= 5,
                       str_starts(area_fips, "C")) |>
                filter(str_detect(industry_code, "-", negate=TRUE)) |>
                mutate(FIPS = area_fips,
                       INDUSTRY = as.integer(industry_code),
                       EMPLOYMENT = as.integer(annual_avg_emplvl),
                       TOTAL_WAGES = total_annual_wages) |>
                select(-area_fips,
                       -industry_code,
                       -annual_avg_emplvl,
                       -total_annual_wages) |>
                # 10 is a special value: "all industries" , so omit
                filter(INDUSTRY != 10) |>
                mutate(AVG_WAGE = TOTAL_WAGES / EMPLOYMENT)
        })) |> bind_rows()

        write_csv(ALL_DATA, fname)
    }

    ALL_DATA <- read_csv(fname, show_col_types=FALSE)

    ALL_DATA_YEARS <- unique(ALL_DATA$YEAR)

    YEARS_DIFF <- setdiff(YEARS, ALL_DATA_YEARS)

    if(length(YEARS_DIFF) > 0){
        stop("Download failed for the following years: ", YEARS_DIFF,
             ". Please delete intermediate files and try again.")
    }

    ALL_DATA
}

WAGES <- get_bls_qcew_annual_averages()

WAGES <- WAGES |> rename(year = YEAR)

WAGES |>
  mutate(AVG_WAGE = dollar(AVG_WAGE, accuracy = 1),
         TOTAL_WAGES = dollar(TOTAL_WAGES, accuracy = 1)) |>
  format_titles() |>
  head(n = 5) |>
  datatable(options = list(searching = FALSE, info = FALSE))

We will clean our data by correcting city names with characters such as ?, rename cities that have multiple names for consistency, and particularly correct Los Angeles city name and CBSA discrepency.

R Code

# Fix weird naming conventions
fix_names <- c(
  "Aguadilla-Isabela-San Sebasti\\?n, PR Metro Area" = "Aguadilla-Isabela-San Sebastián, PR Metro Area",
  "San Germ\\?n-Cabo Rojo, PR Metro Area"    = "San Germán-Cabo, PR Metro Area",
  "Mayag\\?ez, PR Metro Area"  = "Mayagüez, PR Metro Area"
)

# Function that applies replacements across all character columns
fix_table <- function(df) {
  df |>
    mutate(NAME = str_replace_all(NAME, fix_names))
}

# Reassign to original variable names
POPULATION  <- fix_table(POPULATION)
INCOME      <- fix_table(INCOME)
RENT        <- fix_table(RENT)
HOUSEHOLDS  <- fix_table(HOUSEHOLDS)

# Make sure weird cities have proper syntax
pattern <- "[^A-Za-z ,'-]"
find_weird_cities <- function(df, name_col = "NAME") {
  df |>
    filter(str_detect(.data[[name_col]], pattern)) |>
    distinct(.data[[name_col]])
}

tables <- list(
  POPULATION = POPULATION,
  INCOME = INCOME,
  RENT = RENT,
  HOUSEHOLDS = HOUSEHOLDS)

weird_cities_list <- map(tables, find_weird_cities)
#cat(paste0(seq_along(weird_cities_list), ". ", weird_cities_list, collapse = "\n"))


# Assign most common name to city names with same CBSA
canonical_names <- POPULATION |>
  group_by(CBSA, NAME) |>
  tally() |>
  group_by(CBSA) |>
  filter(n == max(n)) |>     # keep all names tied for top frequency
  slice_min(NAME, n = 1) |>  # pick alphabetically first
  ungroup() |>
  select(CBSA, canonical_name = NAME)

standardize_names <- function(df, cbsa_col = "CBSA", name_col = "NAME") {
  df |>
    left_join(canonical_names, by = cbsa_col) |>
    mutate(!!name_col := canonical_name) |>  # replace old names
    select(-canonical_name)
}

# Apply to all four tables
POPULATION  <- standardize_names(POPULATION)
INCOME      <- standardize_names(INCOME)
RENT        <- standardize_names(RENT)
HOUSEHOLDS  <- standardize_names(HOUSEHOLDS)


# Shorten city names to (CITY, STATE ABR)
shorten_name <- function(name) {
  # Extract everything up to the last two capital letters at the end
  str_extract(name, ".*\\b[A-Z]{2}\\b")
}

# Apply to all four tables
POPULATION  <- POPULATION  |> mutate(NAME = shorten_name(NAME))
INCOME      <- INCOME      |> mutate(NAME = shorten_name(NAME))
RENT        <- RENT        |> mutate(NAME = shorten_name(NAME))
HOUSEHOLDS  <- HOUSEHOLDS  |> mutate(NAME = shorten_name(NAME))


# Fix discrepency for LA City Name
fix_CBSAs <- c("31100" = 31080)
fix_names <- c(
  "Los Angeles-Long Beach-Santa Ana, CA" =
    "Los Angeles-Long Beach-Anaheim, CA"
)


standardize_la <- function(df) {
  df |>
    mutate(
      # Convert CBSA to character for matching, then back to numeric if needed
      CBSA = if_else(
        as.character(CBSA) %in% names(fix_CBSAs),  # logical condition
        as.numeric(fix_CBSAs[as.character(CBSA)]), # replacement
        CBSA                                       # else keep original
      ),
      # Replace names in all character columns
      across(where(is.character), ~ str_replace_all(.x, fix_names))
    )
}

#map(tables, standardize_la)

# Apply to all four tables
POPULATION  <- standardize_la(POPULATION)
INCOME      <- standardize_la(INCOME)
RENT        <- standardize_la(RENT)
HOUSEHOLDS  <- standardize_la(HOUSEHOLDS)


# check if "New York" in NAMES strings
nyc_substring <- grepl("New York", POPULATION$NAME)
nyc <-  POPULATION |> filter(NAME == NAME[nyc_substring]) |> distinct(CBSA, NAME)
nyc
la_substring <- grepl("Los Angeles", POPULATION$NAME) # check if "Los Angeles" in NAMES strings
los_angeles <-  POPULATION |> filter(NAME == NAME[la_substring]) |> distinct(CBSA, NAME)
los_angeles

We must all ensure that our dataset contains CBSAs with more than 9 years worth of data:

R Code

# Filter out CBSAs with < 10 rows
filter_cbsa_10 <- function(df) {
  df |> # (missing entries for any four years from 2009-2023)
    group_by(CBSA) |>
    filter(n() >= 10) |>
    ungroup()
}

# Reassign to original variables
POPULATION  <- filter_cbsa_10 (POPULATION)
INCOME      <- filter_cbsa_10 (INCOME)
RENT        <- filter_cbsa_10 (RENT)
HOUSEHOLDS  <- filter_cbsa_10 (HOUSEHOLDS)

INCOME  |>
  format_titles() |>
  head(n = 5) |>
  datatable(options = list(searching = FALSE, info = FALSE))

R Code

RENT  |>
  format_titles() |>
  head(n = 5) |>
  datatable(options = list(searching = FALSE, info = FALSE))

R Code

POPULATION |>
  format_titles() |>
  head(n = 5) |>
  datatable(options = list(searching = FALSE, info = FALSE))

R Code

HOUSEHOLDS |>
  format_titles() |>
  head(n = 5) |>
  datatable(options = list(searching = FALSE, info = FALSE))

Data Integration and Initial Exploration

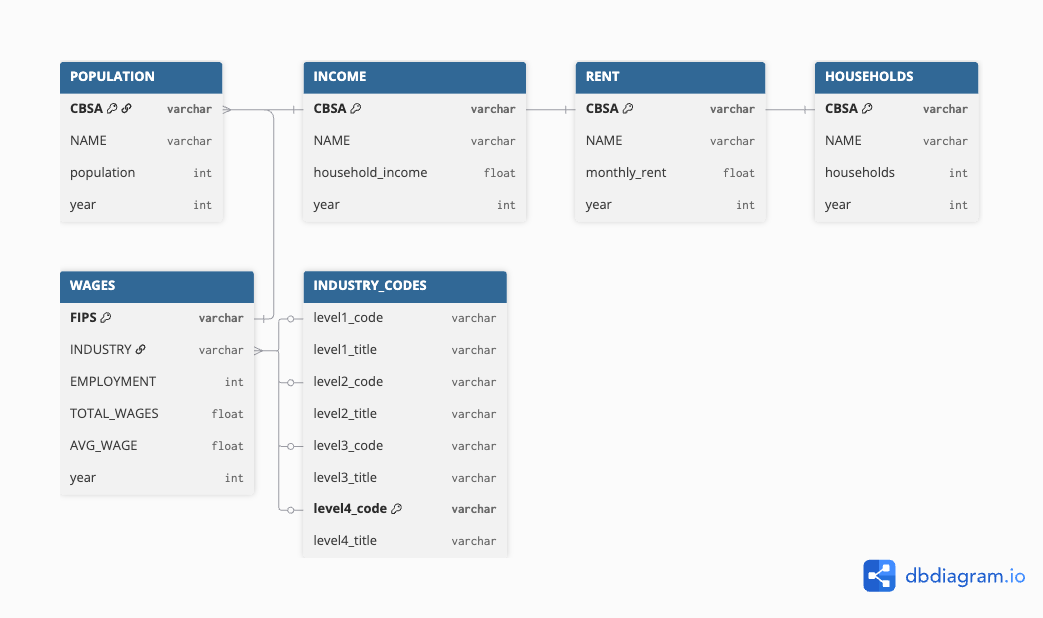

Relationship Diagram

After examining the structure of the data sets, let’s create a suitable data relationship diagram using dbdiagram.io

Now that we have all of our data downloaded and cleaned up, let’s visualize some aspects of our data to begin exploring our datasets.

R Code

ggplot(INCOME, aes(x=year, y=household_income, color=NAME)) +
      geom_point(alpha = 0.5) +
      geom_line(alpha = 0.5) +
      gghighlight(CBSA %in% c(nyc$CBSA, los_angeles$CBSA),
              use_direct_label = FALSE,
              unhighlighted_params = list(alpha = 0.1, color = "grey")) +
      geom_text_repel(data = subset(INCOME, NAME %in% c(nyc$NAME, los_angeles$NAME) & year == max(year)),
                  aes(label = dplyr::case_when(
                    NAME == nyc$NAME ~ "New York",
                    NAME == los_angeles$NAME ~ "Los Angeles",
                    TRUE ~ NAME
                  ), color = NAME),
                  nudge_x = 0.1, nudge_y = 0.1,
                  direction = "y",
                  hjust = 0,
                  segment.color = NA,
                  size = 3.5,
                  show.legend = FALSE
      ) +
      xlab("Year") + ylab("Income ($)") +
      scale_y_continuous(labels = scales::dollar) +
      theme_bw() + theme(legend.position="none") +
      labs(
         title = "Household Income Throughout The Years",
         subtitle = "Each line represents one metropolitan area") +
      theme(
        plot.subtitle = element_text(size = 10, hjust = 0.5),
         plot.title = element_text(size = 14, face = "bold", hjust = 0.5),
         axis.title = element_text(size = 12),
         strip.text = element_text(size = 10, face = "bold")
      ) + guides(size = guide_legend(title.position = "top")) +
      theme(legend.position = "none") +
      annotate("text", x = -Inf,  y = Inf, label = "Each line = one CBSA", hjust = 1.1, vjust = 1.5, size = 3.5, color = "gray30")

R Code

ggplot(RENT, aes(x=year, y=monthly_rent, color=NAME)) +
      #stat_smooth(se=FALSE, color="red4") +
      geom_point(alpha = 0.5) +
      geom_line(alpha = 0.5) +
      gghighlight(CBSA %in% c(nyc$CBSA, los_angeles$CBSA),
              use_direct_label = FALSE,
              unhighlighted_params = list(alpha = 0.1, color = "grey")) +
      geom_text_repel(data = subset(RENT, NAME %in% c(nyc$NAME, los_angeles$NAME) & year == max(year)),
                  aes(label = dplyr::case_when(
                    NAME == nyc$NAME ~ "New York",
                    NAME == los_angeles$NAME ~ "Los Angeles",
                    TRUE ~ NAME
                  ), color = NAME),
                  nudge_x = 0.1, nudge_y = 0.1,
                  direction = "y",
                  hjust = 0,
                  segment.color = NA,
                  size = 3.5,
                  show.legend = FALSE
      ) +
      #geom_point(alpha=0.03) +
      xlab("Year") + ylab("Rent ($)") +
      scale_y_continuous(labels = scales::dollar) +
      theme_bw() + theme(legend.position="none") +
      labs(
         title = "Changes in Rent Throughout The Years",
         subtitle = "Each line represents one metropolitan area") +
      theme(
        plot.subtitle = element_text(size = 10, hjust = 0.5),
         plot.title = element_text(size = 14, face = "bold", hjust = 0.5),
         axis.title = element_text(size = 12),
         strip.text = element_text(size = 10, face = "bold")
      ) + guides(size = guide_legend(title.position = "top")) +
      theme(legend.position = "none") +
      annotate("text", x = -Inf,  y = Inf, label = "Each line = one CBSA", hjust = 1.1, vjust = 1.5, size = 3.5, color = "gray30")

R Code

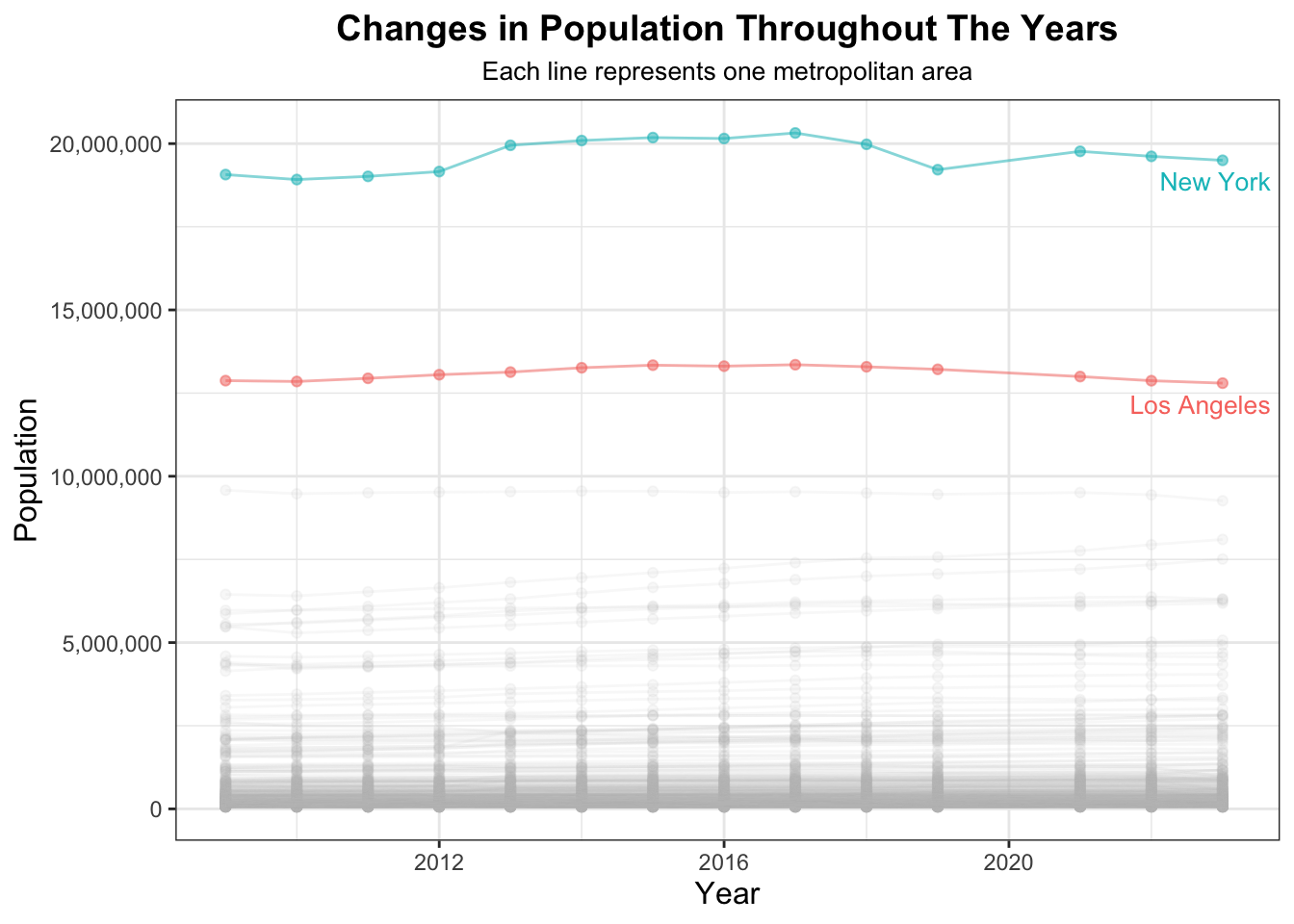

ggplot(POPULATION, aes(x=year, y=population, color=NAME)) +
      geom_point(alpha = 0.5) +
      geom_line(alpha = 0.5) +
      gghighlight(CBSA %in% c(nyc$CBSA, los_angeles$CBSA),
              use_direct_label = FALSE,
              unhighlighted_params = list(alpha = 0.1, color = "grey")) +
      geom_text_repel(data = subset(POPULATION, NAME %in% c(nyc$NAME, los_angeles$NAME) & year == max(year)),
                  aes(label = dplyr::case_when(
                    NAME == nyc$NAME ~ "New York",
                    NAME == los_angeles$NAME ~ "Los Angeles",
                    TRUE ~ NAME
                  ), color = NAME),
                  nudge_x = 0.1, nudge_y = 0.1,
                  direction = "y",
                  hjust = 0,
                  segment.color = NA,
                  size = 3.5,
                  show.legend = FALSE
      ) +
      xlab("Year") + ylab("Population") +
      scale_y_continuous(labels = scales::label_comma()) +
      theme_bw() + theme(legend.position="none") +
      labs(
         title = "Changes in Population Throughout The Years",
         subtitle = "Each line represents one metropolitan area") +
      theme(
         plot.subtitle = element_text(size = 10, hjust = 0.5),
         plot.title = element_text(size = 14, face = "bold", hjust = 0.5),
         axis.title = element_text(size = 12),
         strip.text = element_text(size = 10, face = "bold")
      ) + guides(size = guide_legend(title.position = "top")) +
      theme(legend.position = "none") +
      annotate("text", x = -Inf,  y = Inf, label = "Each line = one CBSA", hjust = 1.1, vjust = 1.5, size = 3.5, color = "gray30")

R Code

ggplot(HOUSEHOLDS, aes(x=year, y=households, color=NAME)) +
      geom_point(alpha = 0.5) +
      geom_line(alpha = 0.5) +
      gghighlight(CBSA %in% c(nyc$CBSA, los_angeles$CBSA),
              use_direct_label = FALSE,
              unhighlighted_params = list(alpha = 0.1, color = "grey")) +
      geom_text_repel(data = subset(HOUSEHOLDS, NAME %in% c(nyc$NAME, los_angeles$NAME) & year == max(year)),
                  aes(label = dplyr::case_when(
                    NAME == nyc$NAME ~ "New York",
                    NAME == los_angeles$NAME ~ "Los Angeles",
                    TRUE ~ NAME
                  ), color = NAME),
                  nudge_x = 0.1, nudge_y = 0.1,
                  direction = "y",
                  hjust = 0,
                  segment.color = NA,
                  size = 3.5,
                  show.legend = FALSE
      ) +
      xlab("Year") + ylab("Household") +
      scale_y_continuous(labels = scales::label_comma()) +
      theme_bw() + theme(legend.position="none") +
      labs(
         title = "Changes in Total Households Throughout The Years",
         subtitle = "Each line represents one metropolitan area") +
      theme(
         plot.subtitle = element_text(size = 10, hjust = 0.5),
         plot.title = element_text(size = 14, face = "bold", hjust = 0.5),
         axis.title = element_text(size = 12),
         strip.text = element_text(size = 10, face = "bold")
      ) + guides(size = guide_legend(title.position = "top")) +
      theme(legend.position = "none") +
      annotate("text", x = -Inf,  y = Inf, label = "Each line = one CBSA", hjust = 1.1, vjust = 1.5, size = 3.5, color = "gray30")

R Code

# need to add wages code

Task 2: Multi-Table Questions

Now that we have explored visualizations on of datasets, let’s explore our data by joining tables together and observing relationships and answering inquiries that will inspire our final policy analysis and help you build fluency with the tables.

Which CBSA (by name) permitted the largest number of new housing units in the decade from 2010 to 2019 (inclusive)?

R Code

# CBSA (by name) that permitted the largest number of new housing units in the decade from 2010 to 2019 (inclusive)
cbsa_by_name_largest_number_housing_units <- left_join(PERMITS, INCOME, by=c("CBSA" = "CBSA", "year" = "year")) |>
    select(CBSA, NAME, new_housing_units_permitted, year) |>
    filter(year >= 2010 & year <= 2019) |>
    group_by(NAME) |>
    summarize(largest_total_housing_units_permitted = sum(new_housing_units_permitted)) |>
    slice_max(largest_total_housing_units_permitted)

cbsa_name <- cbsa_by_name_largest_number_housing_units$NAME
cbsa_name

The CBSA, by metropolitan name, that permitted the largest number of new housing units in the decade from 2010 to 2019 (inclusive) is Houston-The Woodlands-Sugar Land, TX.

In what year did Albuquerque, NM (CBSA Number 10740) permit the most new housing units?

R Code

# Year Albuquerque, NM (CBSA Number 10740) permitted the most new housing units
year_Albuquerque_most_units <- left_join(PERMITS, INCOME, by=c("CBSA" = "CBSA", "year" = "year")) |>
    select(CBSA, NAME, new_housing_units_permitted, year) |>
    filter(CBSA == 10740) |>  # Albuquerque, NM
    slice_max(order_by=new_housing_units_permitted, n=1) # instance with most new housing units
year_Albuquerque <- year_Albuquerque_most_units$year
year_Albuquerque

Albuquerque, NM (CBSA Number 10740) permitted the most new housing units in 2021.

Which state (not CBSA) had the highest average individual income in 2015?

R Code

# households
total_income_per_CBSA <- inner_join(HOUSEHOLDS, INCOME, by=c("CBSA" = "CBSA", "NAME" = "NAME", "year"="year")) |> # left join tables
    filter(year == 2015) |>
    group_by(CBSA) |>
    mutate(total_ind_income = household_income*households) |>
    ungroup()

avg_ind_income <- inner_join(total_income_per_CBSA, POPULATION, by=c("CBSA" = "CBSA", "NAME" = "NAME", "year"="year" )) |> # left join tables
    filter(year == 2015) |>
    mutate(state = str_extract(NAME, ", (.{2})", group=1)) |>
    select(-NAME, -CBSA, -year) |>
    group_by(state) |>
    summarize(avg_ind_income = sum(total_ind_income)/sum(population))  |>
    slice_max(order_by=avg_ind_income, n=10)

state_with_highest_avg_ind_income <- avg_ind_income |> slice(1)
state_highest_avg_ind <- state_with_highest_avg_ind_income$state
state_highest_avg_ind

The state that had the highest average individual income in 2015 was DC.

Data scientists and business analysts are recorded under NAICS code 5182. What is the last year in which the NYC CBSA had the most data scientists in the country? In recent, the San Francisco CBSA has had the most data scientists.

R Code

t1 <- POPULATION |> mutate(std_cbsa = paste0("C", CBSA))
t2 <- WAGES |> mutate(std_cbsa = paste0(FIPS, "0"))

most_data_scientists_analysts_nyc <- inner_join(t1, t2, join_by(std_cbsa == std_cbsa, "year" == "year")) |>
  filter(INDUSTRY == 5182) |>
  group_by(year) |>
  mutate(state = str_extract(NAME, ", (.{2})", group = 1)) |>
  filter(EMPLOYMENT == max(EMPLOYMENT) & state == "NY") |>
  ungroup() |>
  filter(year == max(year))

most_data_scientists_analysts_nyc

nyc_name <- most_data_scientists_analysts_nyc$NAME
nyc_cbsa <- most_data_scientists_analysts_nyc$CBSA
nyc_cbsa <- as.character(nyc_cbsa)
year_most_data_scientists_analysts_nyc <- most_data_scientists_analysts_nyc$year
year_most_data_scientists_analysts_nyc

The last year in which the NYC CBSA 35620 had the most data scientists in the country was 2015.

What fraction of total wages in the NYC CBSA was earned by people employed in the finance and insurance industries (NAICS code 52)? In what year did this fraction peak?

R Code

nyc_fi_industry_fractional_wages <- WAGES |>
  filter(FIPS == most_data_scientists_analysts_nyc$FIPS) |> # change NYC for its CBSA
  group_by(year) |>
  mutate(finance_insurance_industry = if_else(INDUSTRY == 52, TOTAL_WAGES, 0)) |>
  summarize(financial_insurance_industry_fraction_wages = sum(finance_insurance_industry) / sum(TOTAL_WAGES)) |>
  slice_max(order_by = financial_insurance_industry_fraction_wages, n = 20)

nyc_fi_industry_fractional_wages

nyc_fi_industry_fractional_wages$financial_insurance_industry_fraction_wages <- round(nyc_fi_industry_fractional_wages$financial_insurance_industry_fraction_wages, 4)


#nyc_finance_insurance_industry_fraction_wages
nyc_fi_industry_fractional_wages |>
  format_titles() |>
  head(n = 10) |>
  datatable(options = list(searching = FALSE, info = FALSE))

#nyc_avg_fraction_all_years <- mean(nyc_finance_insurance_industry_fraction_wages)
#nyc_avg_fraction_all_years

year_fraction_peaked <- nyc_fi_industry_fractional_wages |>
  slice_max(order_by = financial_insurance_industry_fraction_wages, n = 1) |>
  select(year)
year_fraction_peaked

The fraction of total wages in the NYC CBSA earned by people employed in the finance and insurance industries (NAICS code 52) per year is found in the table above and this fraction peaked in 2014.

Task 3: Initial Visualizations

Using the functions of the ggplot2 package, let’s create suitable visualizations for each of the following relationships to continue familiarizing ourselves with our datasets.

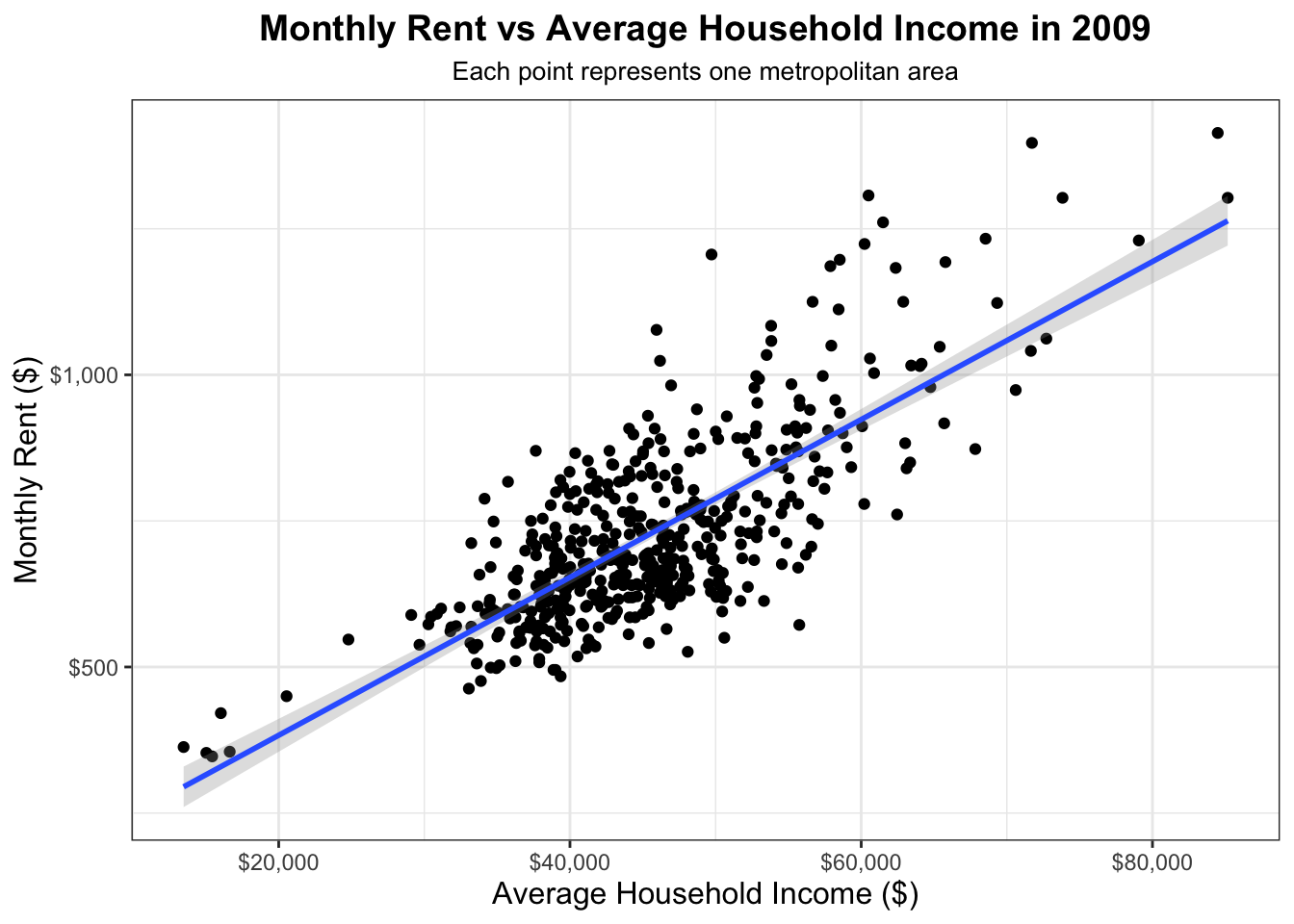

The relationship between monthly rent and average household income per CBSA in 2009.

R Code

# The relationship between monthly rent and average household income per CBSA in 2009.
monthly_rent_and_ave_hh_income <- inner_join(INCOME, RENT, by=c("CBSA" = "CBSA", "NAME" = "NAME", "year"="year")) |>
    filter(year == 2009) |>
    group_by(CBSA)

ggplot(monthly_rent_and_ave_hh_income, aes(x = household_income, y = monthly_rent)) +
  geom_point(alpha = 1) +
  geom_smooth(method = "lm", se = TRUE, alpha = .3) +
  xlab("Average Household Income ($)") +
  ylab("Monthly Rent ($)") +
  labs(
    title = "Monthly Rent vs Average Household Income in 2009",
    subtitle = "Each point represents one metropolitan area"
  ) +
  scale_y_continuous(labels = scales::dollar) +
  scale_x_continuous(labels = scales::dollar) +
  theme_bw()   +
  theme(
    plot.subtitle = element_text(size = 10, hjust = 0.5),
    plot.title = element_text(size = 14, face = "bold", hjust = 0.5),
    axis.title = element_text(size = 12),
    strip.text = element_text(size = 10, face = "bold")
  ) + guides(size = guide_legend(title.position = "top")) +
  theme(legend.position = "none") +
  annotate("text", x = -Inf,  y = Inf, label = "Each point = one CBSA", hjust = 1.1, vjust = 1.5, size = 3.5, color = "gray30")

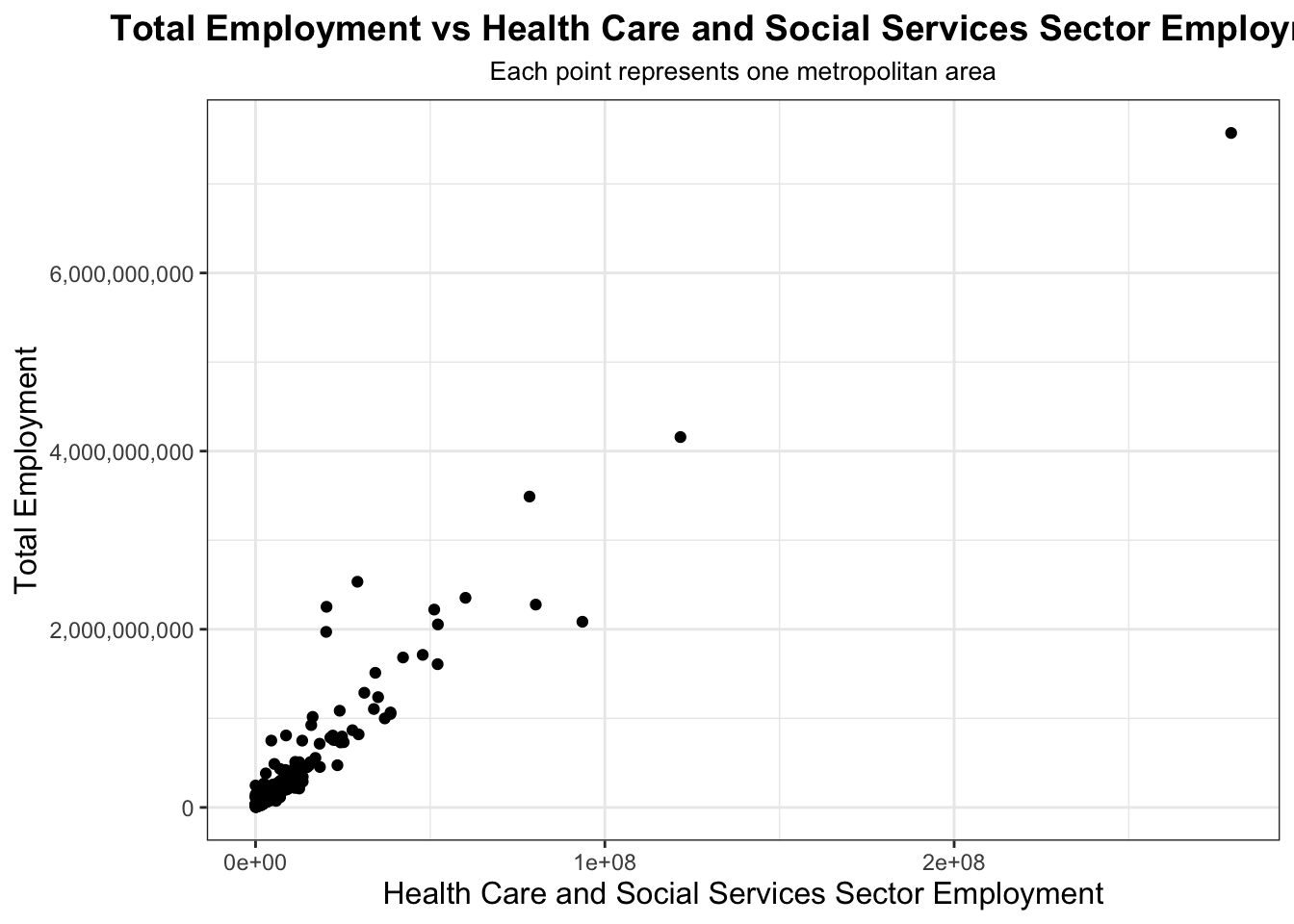

The relationship between total employment and total employment in the health care and social services sector (NAICS 62) across different CBSAs. Design your visualization so that it is possible to see the evolution of this relationship over time.

R Code

#The relationship between total employment and total employment in the health care and social services sector (NAICS 62) across different CBSAs. Design your visualization so that it is possible to see the evolution of this relationship over time.

t1 <- INCOME |> mutate(std_cbsa = paste0("C", CBSA))
t2 <- WAGES |> mutate(std_cbsa = paste0(FIPS, "0"))
hc_ss_employment_per_cbsa <- inner_join(t1, t2, join_by(std_cbsa == std_cbsa)) |>
  filter(INDUSTRY == 62) |>
  group_by(std_cbsa) |>
  summarize(hc_ss_employment = sum(EMPLOYMENT))
hc_ss_employment_per_cbsa

total_employment_per_cbsa <- inner_join(t1, t2, join_by(std_cbsa == std_cbsa)) |>
  group_by(std_cbsa) |>
  summarize(total_employment = sum(EMPLOYMENT))
total_employment_per_cbsa

hc_ss_and_total_employment_per_cbsa <- inner_join(hc_ss_employment_per_cbsa, total_employment_per_cbsa, join_by(std_cbsa == std_cbsa))


ggplot(hc_ss_and_total_employment_per_cbsa, aes(x = hc_ss_employment, y = total_employment)) +
  geom_point(alpha = 1.0) +
  xlab("Health Care and Social Services Sector Employment") +
  ylab("Total Employment") +
  scale_y_continuous(labels = scales::label_comma()) +
  theme_bw() +
  labs(
    title = "Total Employment vs Health Care and Social Services Sector Employment",
    subtitle = "Each point represents one metropolitan area") +
  theme(
    plot.subtitle = element_text(size = 10, hjust = 0.5),
    plot.title = element_text(size = 14, face = "bold", hjust = 0.5),
    axis.title = element_text(size = 12),
    strip.text = element_text(size = 10, face = "bold")
  ) + guides(size = guide_legend(title.position = "top")) +
  theme(legend.position = "none") +
  annotate("text", x = -Inf,  y = Inf, label = "Each point = one CBSA", hjust = 1.1, vjust = 1.5, size = 3.5, color = "gray30")

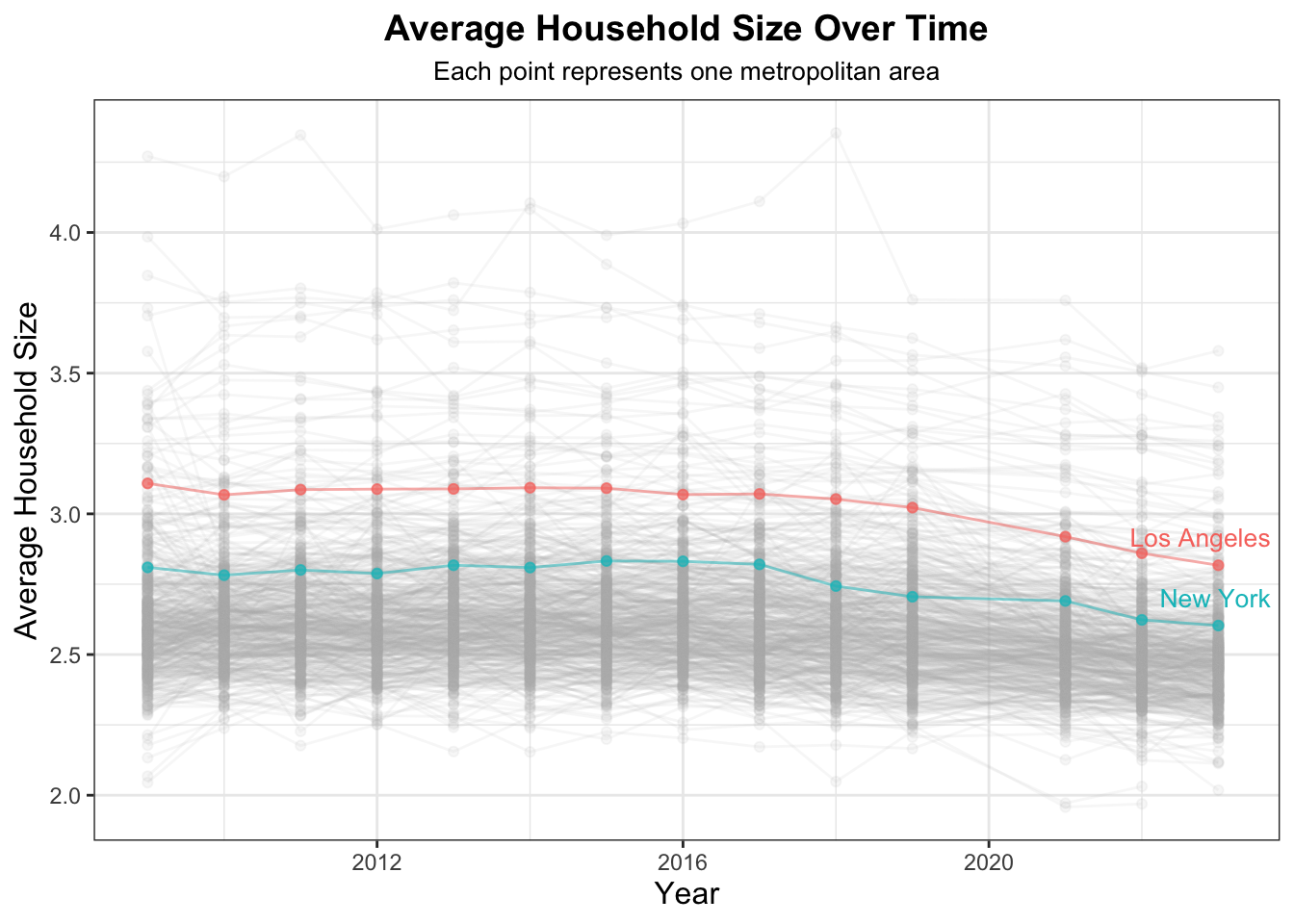

The evolution of average household size over time. Use different lines to represent different CBSAs.

R Code

ave_household_size <- inner_join(HOUSEHOLDS, POPULATION, join_by("CBSA" == "CBSA", "NAME" == "NAME", "year" == "year")) |> # join tables
  group_by(CBSA) |>
  mutate(ave_household = population / households) |>
  select(-households, -population)

nyc_substring <- grepl("New York", POPULATION$NAME) # check if "New York" in NAMES strings
nyc <-  POPULATION |> filter(NAME == "New York-Newark-Jersey City, NY-NJ-PA") |> distinct(CBSA, NAME)
nyc
#la_substring <- grepl("Los Angeles", POPULATION$NAME) # check if "Los Angeles" in NAMES strings
los_angeles <-  POPULATION |> filter(NAME == "Los Angeles-Long Beach-Anaheim, CA") |> distinct(CBSA, NAME)
los_angeles

ggplot(ave_household_size, aes(x = year, y = ave_household, color = NAME)) +
  geom_point(alpha = .7) +
  geom_path(alpha = .5) +
  gghighlight(CBSA %in% c(nyc$CBSA, los_angeles$CBSA),
              use_direct_label = FALSE,
              unhighlighted_params = list(alpha = 0.1, color = "gray70")) +
  geom_text_repel(data = subset(ave_household_size, CBSA %in% c(nyc$CBSA, los_angeles$CBSA) & year == max(year)),
                  aes(label = dplyr::case_when(
                    NAME == nyc$NAME ~ "New York",
                    NAME == los_angeles$NAME ~ "Los Angeles",
                    TRUE ~ NAME
                  ), color = NAME),
                  nudge_x = 0.1, nudge_y = 0.1,
                  direction = "y",
                  hjust = 0,
                  segment.color = NA,
                  size = 3.5,
                  show.legend = FALSE
  ) +
  xlab("Year") +
  ylab("Average Household Size") +
  theme_bw() +
  theme(legend.position = "none") +
  labs(
    title = "Average Household Size Over Time",
    subtitle = "Each point represents one metropolitan area") +
  theme(
    plot.subtitle = element_text(size = 10, hjust = 0.5),
    plot.title = element_text(size = 14, face = "bold", hjust = 0.5),
    axis.title = element_text(size = 12),
    strip.text = element_text(size = 10, face = "bold")
  ) + guides(size = guide_legend(title.position = "top")) +
  theme(legend.position = "none")

Task 4: Rent Burden

We then join together the INCOME and RENT tables to analyze rent burden or how much of income a typical resident spends on housing throughout metropolitan areas in the USA.

We first construct a suitable measure of rent burden by calculating the fraction of monthly income spent on rent as a baselin eand standardizing our data with the long term national average as the mean value. (1)
To increase interpretability, we transform our rent burden using the mean value, standard deviations, and z-scores to rescale our range of rent burden from 0-100 with the long term national average as 50.

R Code

normal_income_rent <- inner_join(INCOME, RENT, join_by("CBSA" == "CBSA", "NAME" == "NAME", "year" == "year")) |>
    mutate( # calculate fraction of annual income spent on rent
    avg_monthly_income = household_income / 12,
    rent_fraction = (monthly_rent) / avg_monthly_income,
    # standardize with long term national average as mean (50)
    long_term_national_avg = mean(rent_fraction, na.rm = TRUE),
    # scale and transform: use standard deviations, z-scores and rescale from (0-100)
    std_dev_fraction = sd(rent_fraction, na.rm = TRUE),
    z_scores = (rent_fraction - long_term_national_avg) / std_dev_fraction,
    rent_burden_measure = pmin(pmax(50 + 10 * z_scores, 0), 100) # max value set to 100
    )

Now that we have created our metric, let’s create a couple of tables to guide our readers through the dynamics of rent burden and visualize rent burden using the DT package from Mini-Project #01:

Let’s look closer at our home, the NYC Metropolitan Area and see how rent burden has changed over time:

R Code

nyc_rent_burden_over_time <- normal_income_rent |>
  filter(CBSA == nyc_cbsa) |>
  group_by(year) |>
  summarize(rent_burden_measure)

nyc_rent_burden_over_time$rent_burden_measure = round(nyc_rent_burden_over_time$rent_burden_measure, 2)

nyc_rent_burden_over_time |>
  format_titles() |>
  head(n = 20) |>
  datatable(options = list(searching = FALSE, info = FALSE))

R Code

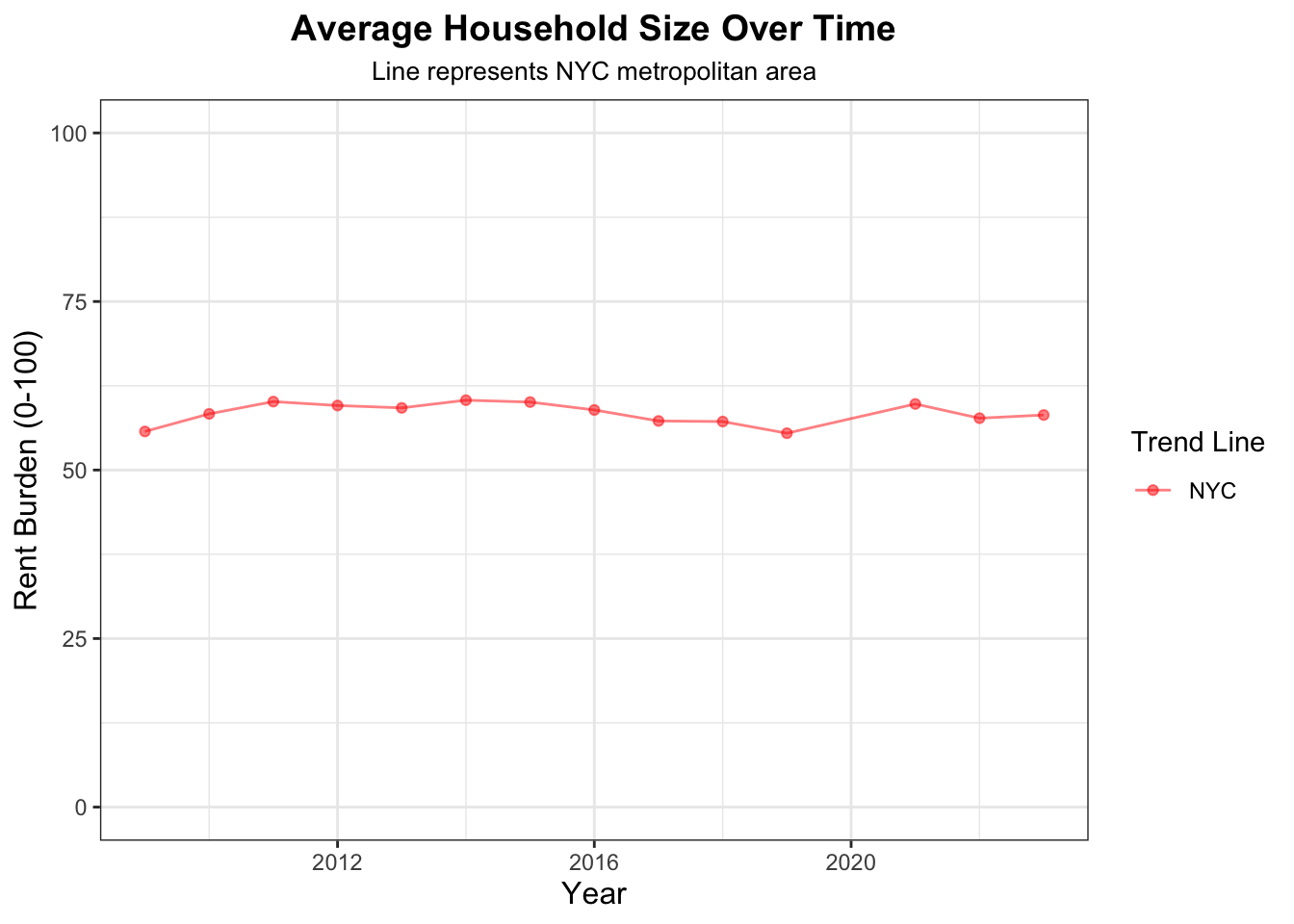

ggplot(nyc_rent_burden_over_time, aes(x = year, y = rent_burden_measure, color = "NYC")) +
  geom_point(alpha = .5) +
  ylim(0, 100) +
  geom_path(alpha = .5) +
  scale_color_manual(
    name = "Trend Line",
    values = c("NYC" = "red")
  ) +
  xlab("Year") +
  ylab("Rent Burden (0-100)") +
  ggtitle("Rent Burden In NYC Over Time") +
  theme_bw() +
  labs(
    title = "Average Household Size Over Time",
    subtitle = "Line represents NYC metropolitan area") +
  theme(
    legend.position = "right",
    plot.subtitle = element_text(size = 10, hjust = 0.5),
    plot.title = element_text(size = 14, face = "bold", hjust = 0.5),
    axis.title = element_text(size = 12),
    strip.text = element_text(size = 10, face = "bold")
  ) + guides(size = guide_legend(title.position = "top"))

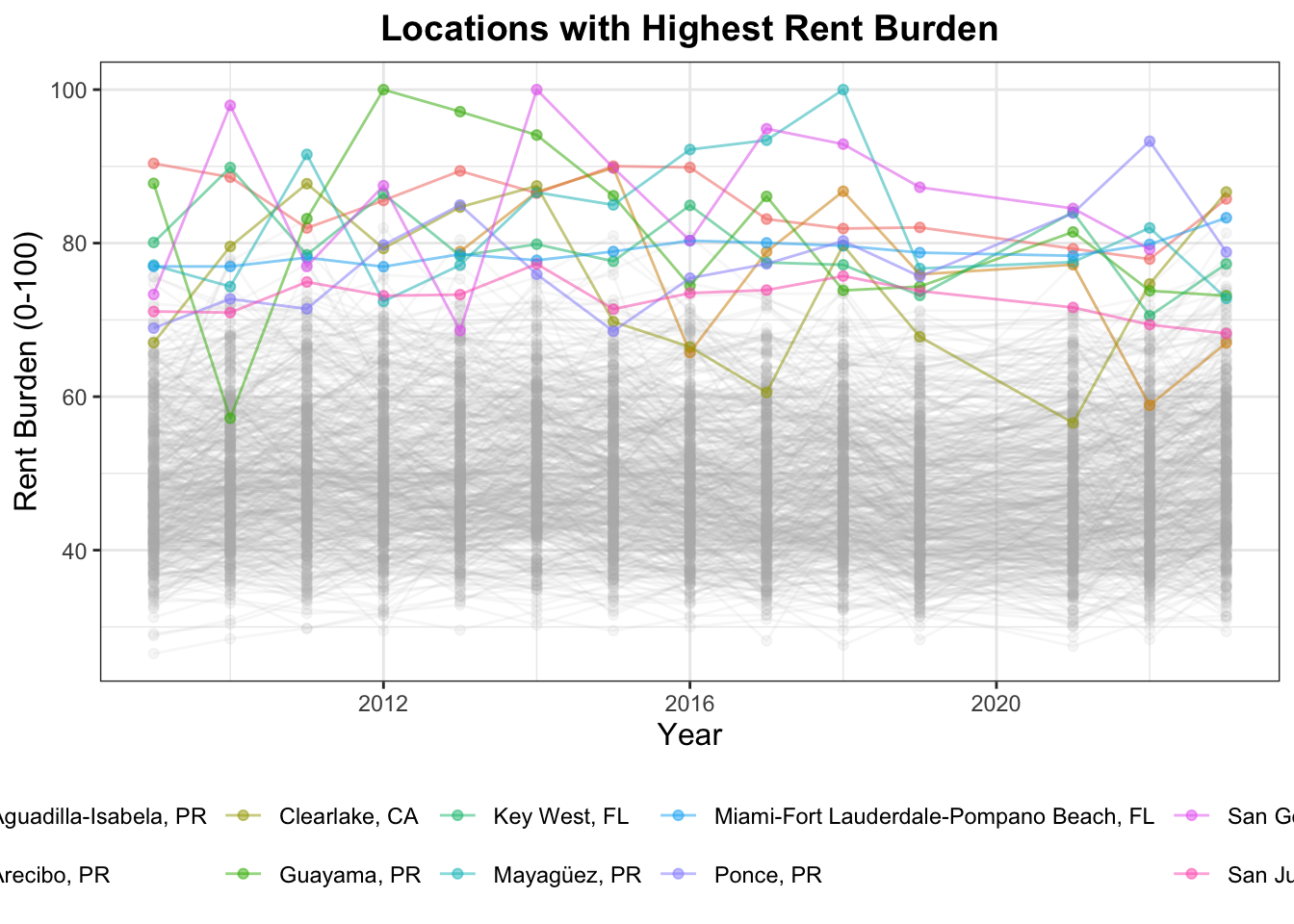

And let’s look at the Metro Areas with the highest and lowest rent burden:

R Code

# Highlight the Metro Areas highest and lowest with the highest and lowest rent burden
highest_rent_burden_areas <- normal_income_rent |>
  group_by(CBSA) |>
  mutate(total_rent_burdens_per_CBSA = mean(rent_burden_measure)) |>
  distinct(CBSA, NAME, total_rent_burdens_per_CBSA) |>
  ungroup() |>
  arrange(desc(total_rent_burdens_per_CBSA)) |>
  slice_head(n=10)

highest_rent_burden_areas |>
  format_titles() |>
  head(n = 10) |>
  datatable(options = list(searching = FALSE, info = FALSE))

R Code

ggplot(normal_income_rent , aes(x = year, y = rent_burden_measure, color = NAME)) +
  geom_point(alpha = .5) +
  geom_path(alpha = .5) +
  suppressWarnings(gghighlight(CBSA %in% highest_rent_burden_areas$CBSA,
              use_direct_label = FALSE,
              unhighlighted_params = list(alpha = 0.1, color = "gray70"))) +
  xlab("Year") +
  ylab("Rent Burden (0-100)") +
  ggtitle("Locations with Highest Rent Burden") +
  theme_bw() +
  theme(
    legend.position = "bottom",
    plot.title = element_text(size = 14, face = "bold", hjust = 0.5),
    axis.title = element_text(size = 12),
    strip.text = element_text(size = 10, face = "bold")
  ) + guides(size = guide_legend(title.position = "top"))

R Code

lowest_rent_burden_areas <- normal_income_rent |>
  group_by(CBSA) |>
  mutate(total_rent_burdens_per_CBSA = mean(rent_burden_measure)) |>
  distinct(CBSA, NAME, total_rent_burdens_per_CBSA) |>
  ungroup() |>
  arrange(total_rent_burdens_per_CBSA) |>
  slice_head(n=10)

lowest_rent_burden_areas |>
  format_titles() |>
  head(n = 10) |>
  datatable(options = list(searching = FALSE, info = FALSE))

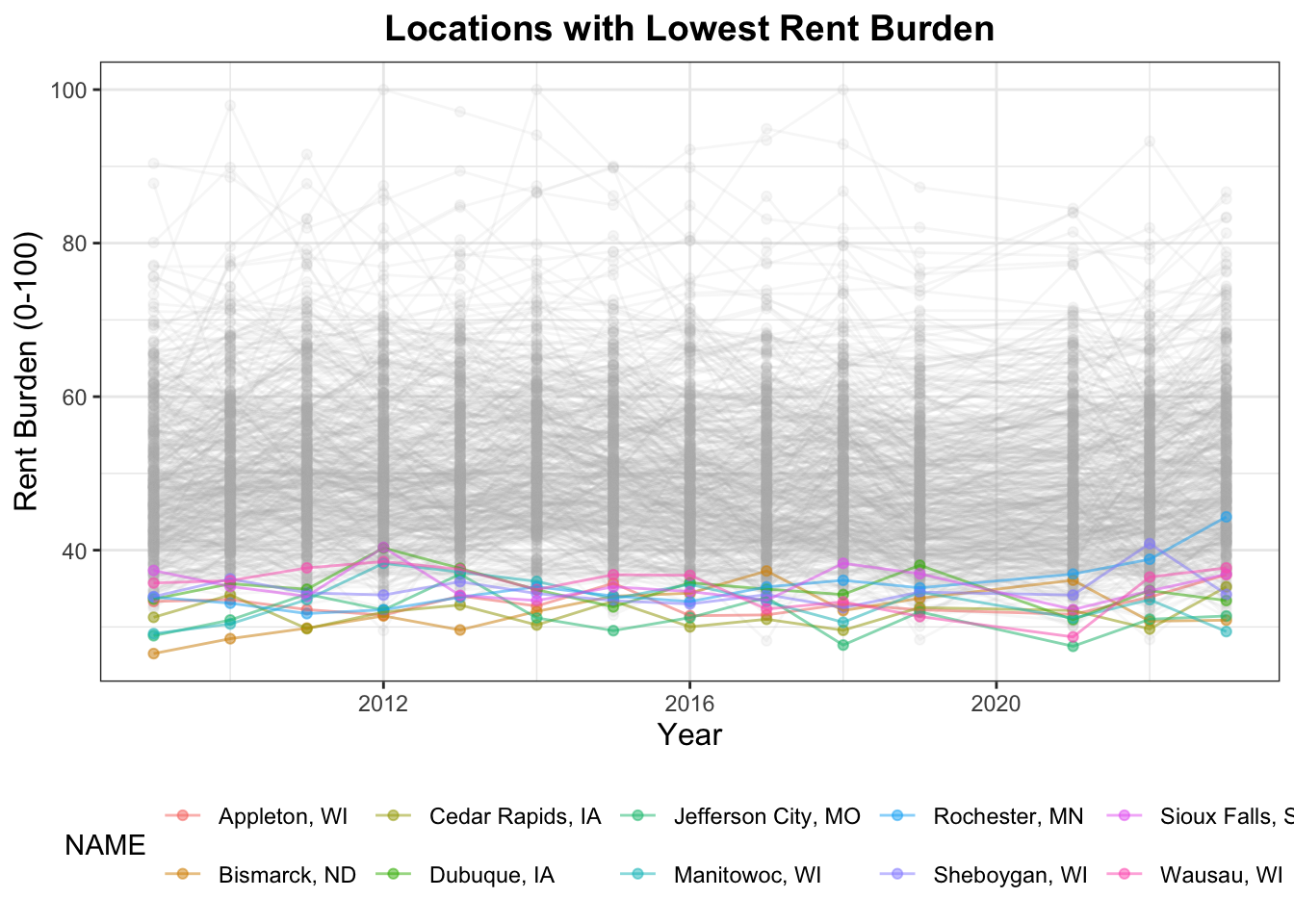

R Code

ggplot(normal_income_rent, aes(x = year, y = rent_burden_measure, color = NAME)) +
  geom_point(alpha = .5) +
  geom_path(alpha = .5) +
  suppressWarnings(gghighlight(CBSA %in% lowest_rent_burden_areas$CBSA,
                               use_direct_label = FALSE,
                               unhighlighted_params = list(alpha = 0.1, color = "gray70"))) +
  xlab("Year") +
  ylab("Rent Burden (0-100)") +
  ggtitle("Locations with Lowest Rent Burden") +
  theme_bw() +
  theme(
    legend.position = "bottom",
    plot.title = element_text(size = 14, face = "bold", hjust = 0.5),
    axis.title = element_text(size = 12),
    strip.text = element_text(size = 10, face = "bold")
  ) + guides(size = guide_legend(title.position = "top"))

Task 5: Housing Growth

Next, we want to consider the ‘building-friendliness’ of various metropolitan areas, particularly, we want to identify CBSAs that permit a large number of new housing units relative to their existing population. And even more particularly, we want to identify CBSAs where the total number of housing units permitted is growing faster than the population, as these have the greatest chance of being highly affordable!

We join together the POPULATION and PERMITS tables to construct a suitable measure of housing growth: that is, how many new housing units are permitted in a CBSA, relative to both the current number of residents and the overall population growth of that CBSA.

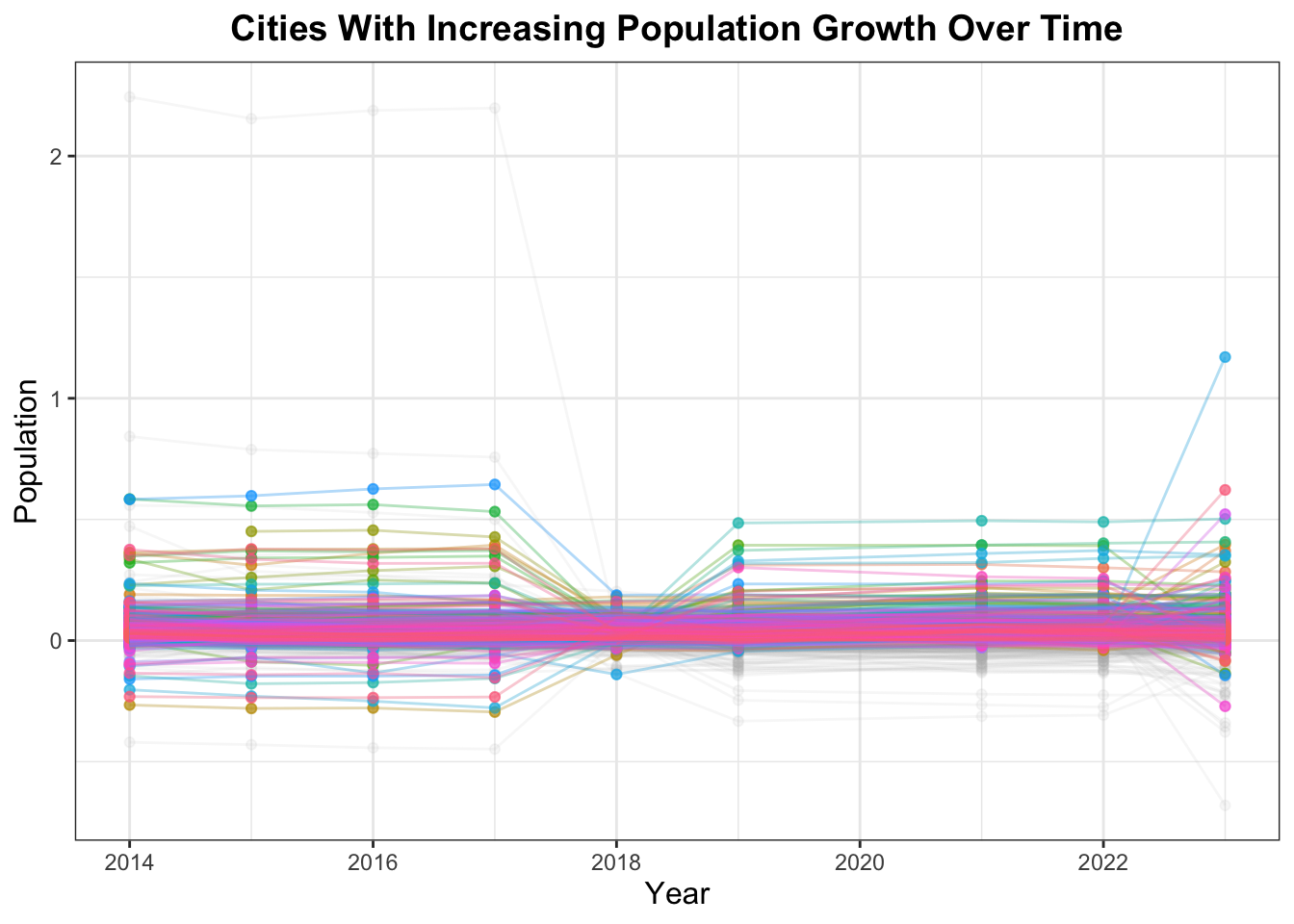

We first calculate population growth within each CBSA over a rolling 5 year window:

R Code

population_growth <- POPULATION |>
  group_by(CBSA) |>
  arrange(year) |>
  mutate(pop_growth_5yrs = (population - lag(population, n=5)) / lag(population, n=5)) |>
  ungroup() |>
  filter(!is.na(pop_growth_5yrs))

population_growth |>
  format_titles() |>
  head(n = 10) |>
  datatable(options = list(searching = FALSE, info = FALSE))

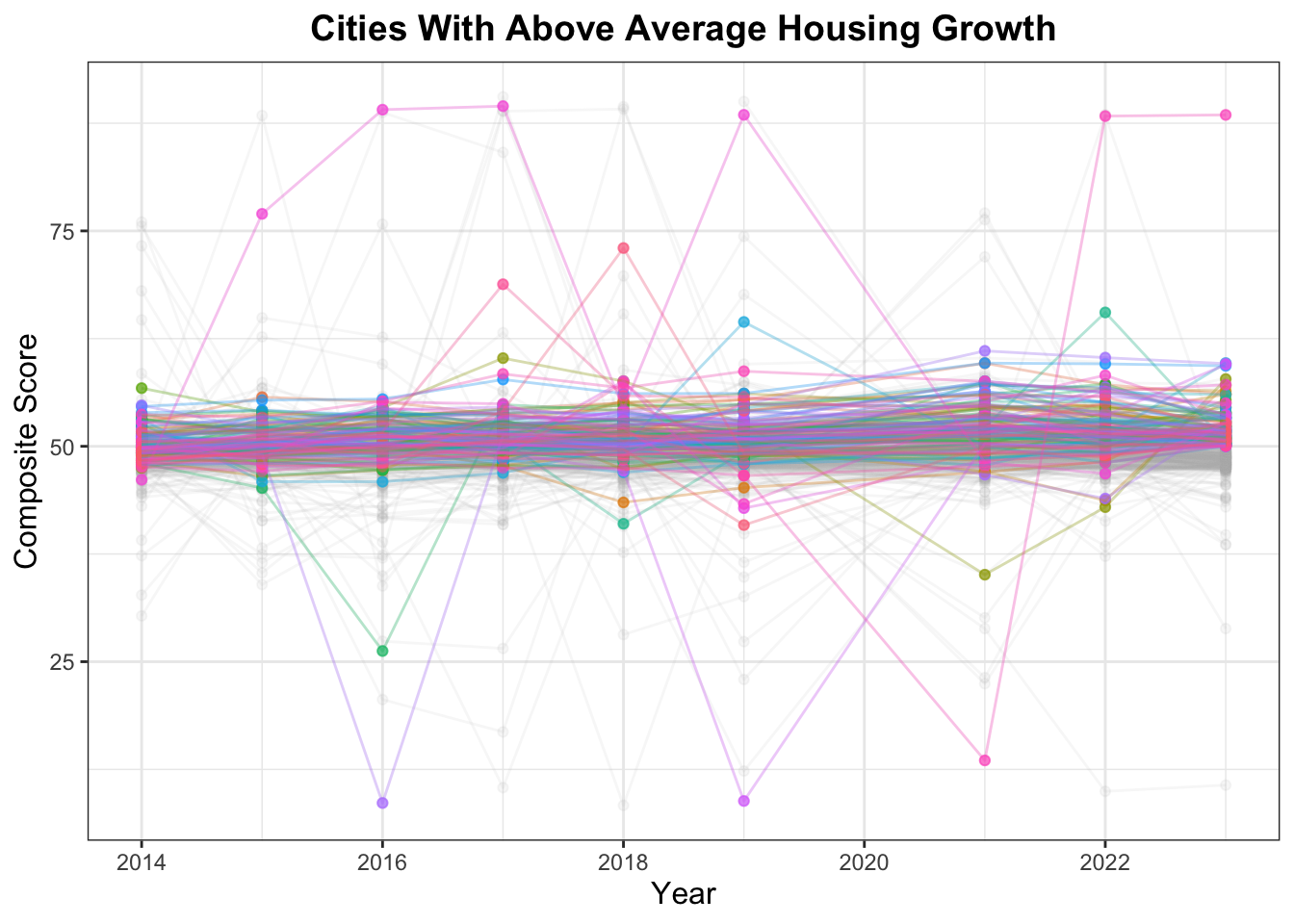

We then construct our metric in two parts:

An ‘instantaneous’ measure of housing growth that depends on the absolute population of a CBSA and the number of new housing units permitted that year.
And a ‘rate-based’ measure of housing growth that compares the number of housing permits to the population growth over a 5 year lookback window.

R Code

housing_change <- PERMITS |>
  group_by(CBSA) |>
  arrange(year) |>
  mutate(housing_change_5yrs = (new_housing_units_permitted - lag(new_housing_units_permitted, n=5)) / lag(new_housing_units_permitted, n=5)) |>
  ungroup() |>
  filter(!is.na(housing_change_5yrs))

housing_change  |>
  format_titles() |>
  head(n = 10) |>
  datatable(options = list(searching = FALSE, info = FALSE))

R Code

housing_growth <- inner_join(population_growth, housing_change, join_by("CBSA" == "CBSA", "year" == "year")) |>
  mutate(# inst. measure of housing growth, absolute pop. of CBSA and num of new home units
    # Raw housing supply relative to pop.
    new_housing_relative_to_pop = new_housing_units_permitted / population,
    # change in housing / change in population
    rate_based_growth = housing_change_5yrs / pop_growth_5yrs
  ) |>
  filter(year > 2013, !is.na(new_housing_relative_to_pop), !is.na(rate_based_growth), !is.infinite(rate_based_growth)) |>
  # standardization: use z-scores and rescale to range (0-100)
  mutate(
    z_score_new_housing_relative_to_pop = (new_housing_relative_to_pop - mean(new_housing_relative_to_pop, na.rm = TRUE)) / sd(new_housing_relative_to_pop, na.rm = TRUE),
    instantaneous_housing_growth = pmin(pmax(50 + 10 * z_score_new_housing_relative_to_pop, 0), 100),
    z_score_rate_based_housing = (rate_based_growth - mean(rate_based_growth, na.rm = TRUE)) / sd(rate_based_growth, na.rm = TRUE),
    rate_based_housing_growth = pmin(pmax(50 + 10 * z_score_rate_based_housing, 0), 100)
  )

Once we have developed the two individual metrics, we construct two tables identifying the CBSAs that score particularly high or low on each metric:

R Code

top_inst_housing_growth <- housing_growth |>
  filter(year == 2023) |>
  arrange(desc(instantaneous_housing_growth)) |>
  slice_head(n=5)

bottom_inst_housing_growth <- housing_growth |>
  filter(year == 2023) |>
  arrange(instantaneous_housing_growth) |>
  slice_head(n=5)

# Combine side by side
lowest_and_highest_inst_housing_growth <- tibble(
  "Top Metro Area" = top_inst_housing_growth$NAME,
  "Top Instantaneous Growth" = top_inst_housing_growth$instantaneous_housing_growth,
  "Bottom Metro Area" = bottom_inst_housing_growth$NAME,
  "Bottom Instantaneous Growth" = bottom_inst_housing_growth$instantaneous_housing_growth
)
# Pretty display
lowest_and_highest_inst_housing_growth|> gt()

Top Metro Area	Top Instantaneous Growth	Bottom Metro Area	Bottom Instantaneous Growth
Myrtle Beach-Conway-North Myrtle Beach, SC-NC	100.00000	Wheeling, WV-OH	37.99838
Salisbury, MD-DE	100.00000	Danville, IL	38.08536
Punta Gorda, FL	99.08106	Morgantown, WV	38.10882
Crestview-Fort Walton Beach-Destin, FL	90.15609	Weirton-Steubenville, WV-OH	38.16689
North Port-Sarasota-Bradenton, FL	87.70969	Decatur, IL	38.73129

R Code

locations_top_rate_housing_growth <- housing_growth |>
  arrange(desc(rate_based_housing_growth)) |>
  slice_head(n=5)

locations_bottom_rate_housing_growth <- housing_growth |>
  arrange(rate_based_housing_growth) |>
  slice_head(n=5)
# Combine side by side
lowest_and_highest_rate_housing_growth <- tibble(
  "Top Metro Area" = locations_top_rate_housing_growth$NAME,
  "Top Rate Based Growth" = locations_top_rate_housing_growth$rate_based_housing_growth,
  "Bottom Metro Area" = locations_bottom_rate_housing_growth$NAME,
  "Bottom Rate Based Growth" = locations_bottom_rate_housing_growth$rate_based_housing_growth
)
# Pretty display
lowest_and_highest_rate_housing_growth |> gt()

Top Metro Area	Top Rate Based Growth	Bottom Metro Area
Buffalo-Cheektowaga-Niagara Falls, NY	100	Racine, WI
Chicago-Naperville-Elgin, IL-IN-WI	100	Florence, SC
Sheboygan, WI	100	Parkersburg-Vienna, WV
Florence-Muscle Shoals, AL	100	Roanoke, VA
Lewiston-Auburn, ME	100	Sierra Vista-Douglas, AZ

Finally, we develop a composite score that combines these two metrics as a weighted sum with 80% of weight applied to our rate based growth since it takes time for any change to be accounted for.

Lastly, we identify CBSAs that do particularly well and particularly poorly on our metric.

R Code

# composite scores for instantaneous_housing_growth and rate_based_housing_growth
composite_scores <- housing_growth |> # weighted average for composite score
  mutate(composite_score = 0.2*instantaneous_housing_growth + 0.8*rate_based_housing_growth) |>
  select(CBSA, NAME, year, composite_score)

top_composite_scores <- composite_scores |>
  arrange(desc(composite_score)) |>
  slice_head(n=5)

bottom_composite_scores <- composite_scores |>
  arrange(composite_score) |>
  slice_head(n=5)

# Combine side by side
lowest_and_highest_composite_score <- tibble(
  "Top Metro Area" = top_composite_scores$NAME,
  "Top Composite Housing Growth" = top_composite_scores$composite_score,
  "Bottom Metro Area" = bottom_composite_scores$NAME,
  "Bottom Composite Housing Growth" = bottom_composite_scores$composite_score
)
# Pretty display
lowest_and_highest_composite_score |> gt()

Top Metro Area	Top Composite Housing Growth	Bottom Metro Area	Bottom Composite Housing Growth
Florence-Muscle Shoals, AL	90.56156	Parkersburg-Vienna, WV	8.324623
New Bern, NC	90.01650	Racine, WI	8.600411
Sheboygan, WI	89.48312	Roanoke, VA	8.834238
Monroe, MI	89.41990	Sierra Vista-Douglas, AZ	9.955963
Lewiston-Auburn, ME	89.14345	Florence, SC	10.384420

R Code

# cummulative composite scores: compute cummulative mean of subsequent means
cumulative_composite_scores <- composite_scores |>
  group_by(CBSA) |>
  mutate(cumulative_composite_score = cummean(composite_score)) |>
  ungroup() |>
  filter(year == 2023)

top_cumulative_composite_scores <- cumulative_composite_scores |>
  arrange(desc(cumulative_composite_score)) |>
  slice_head(n=5)

bottom_cumulative_composite_scores <- cumulative_composite_scores |>
  arrange(cumulative_composite_score) |>
  slice_head(n=5)
# Combine side by side
lowest_and_highest_cumulative_composite_scores <- tibble(
  "Top Areas" = top_cumulative_composite_scores$NAME,
  "Top Scores" = top_cumulative_composite_scores$cumulative_composite_score,
  "Bottom Areas" = bottom_cumulative_composite_scores$NAME,
  "Bottom Scores" = bottom_cumulative_composite_scores$cumulative_composite_score
)
# Pretty display
lowest_and_highest_cumulative_composite_scores |> gt()

Top Areas	Top Scores	Bottom Areas	Bottom Scores
Sheboygan, WI	65.78670	Sierra Vista-Douglas, AZ	24.43942
New Bern, NC	58.16314	Florence, SC	42.52648
Lewiston-Auburn, ME	57.32183	Evansville, IN-KY	43.41317
Myrtle Beach-Conway-North Myrtle Beach, SC-NC	57.11492	Parkersburg-Vienna, WV	43.62317
St. George, UT	56.11025	Akron, OH	43.78833

Task 6: Visualization

Lastly, we create several visualizations to investigate the relationships between Rent Burden and Housing Growth metrics. Using these plots, we will be able identify the most “YIMBY” CBSAs as ones which:

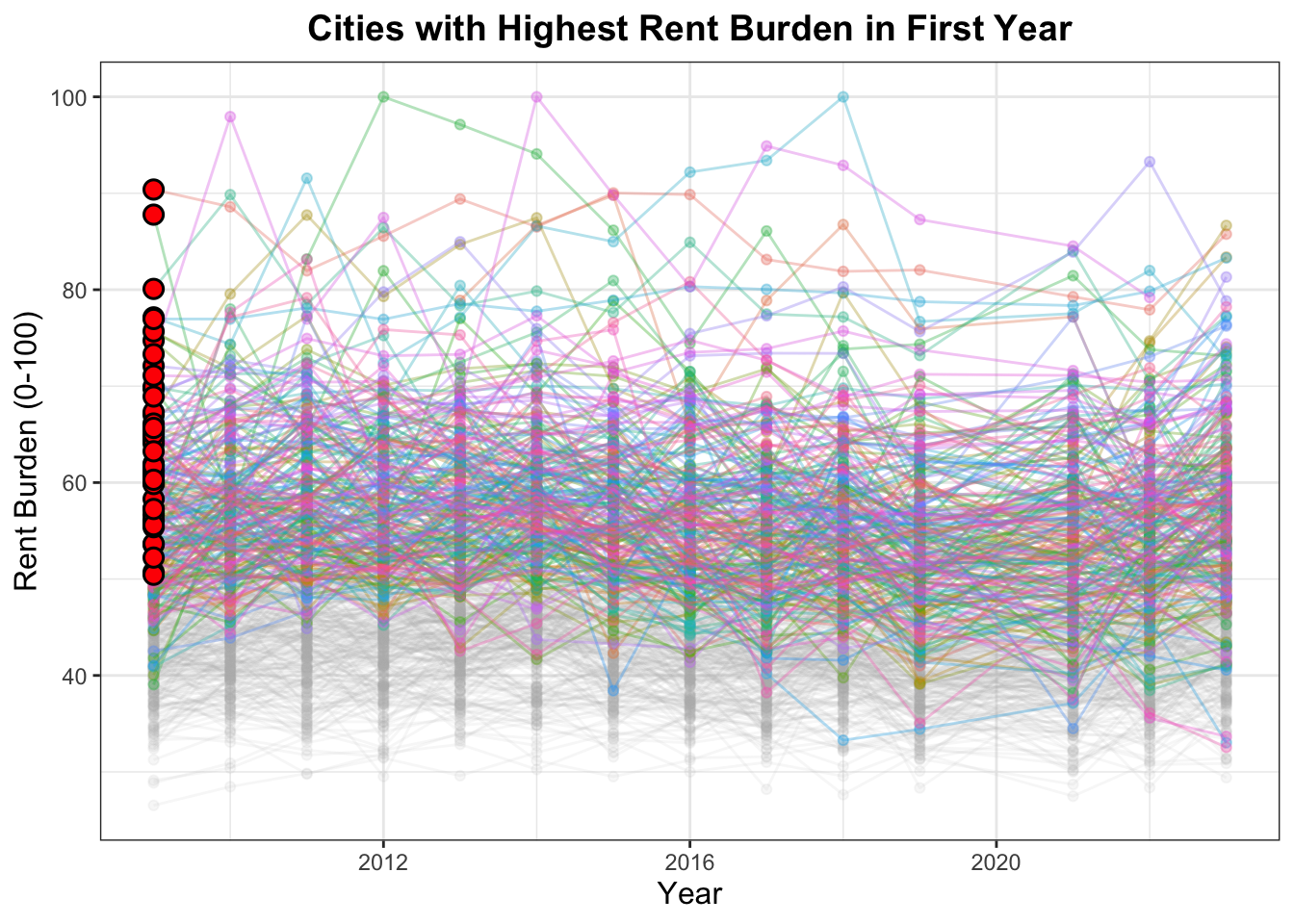

had relatively high rent burden in the early part of the study period

R Code

# had relatively high rent burden in the early part of the study period;
highest_rent_burden_areas_early_in_study <- normal_income_rent |>
  filter(year <= 2014) |>
  group_by(CBSA, NAME) |>
  mutate(avg_initial_rent_burden = mean(rent_burden_measure, na.rm = TRUE)) |>
  arrange(desc(avg_initial_rent_burden)) |>
  filter(avg_initial_rent_burden > 50) |>
  distinct(CBSA, NAME, avg_initial_rent_burden)

# visualize the first year for rent burden measures
highest_rent_burden_areas_early_in_study_year_one <- normal_income_rent |>
  filter(year == 2019) |>
  group_by(CBSA, NAME) |>
  arrange(desc(rent_burden_measure)) |>
  filter(rent_burden_measure > 60) |>
  distinct(CBSA, NAME, rent_burden_measure)

first_points <- normal_income_rent |>
  filter(CBSA %in% highest_rent_burden_areas_early_in_study_year_one$CBSA, year == 2009) |>
  as.data.frame()

ggplot(normal_income_rent , aes(x = year, y = rent_burden_measure, color = NAME)) +
  geom_point(alpha = .3) +
  geom_path(alpha = .3) +
  suppressWarnings(gghighlight(CBSA %in% highest_rent_burden_areas_early_in_study$CBSA,
                               use_direct_label = FALSE,
                               unhighlighted_params = list(alpha = 0.1, color = "gray70"))) +
  geom_point(
    data = first_points,
    aes(y = rent_burden_measure, x = year),
    color = "black",
    fill = "red",
    shape = 21,
    size = 3.0,
    stroke = 0.8,
    inherit.aes = FALSE
  ) +
  xlab("Year") +
  ylab("Rent Burden (0-100)") +
  ggtitle("Cities with Highest Rent Burden in First Year") +
  theme_bw() +
  theme(
    legend.position = "none",
    plot.title = element_text(size = 14, face = "bold", hjust = 0.5),
    axis.title = element_text(size = 12),
    strip.text = element_text(size = 10, face = "bold")
  ) + guides(size = guide_legend(title.position = "top"))

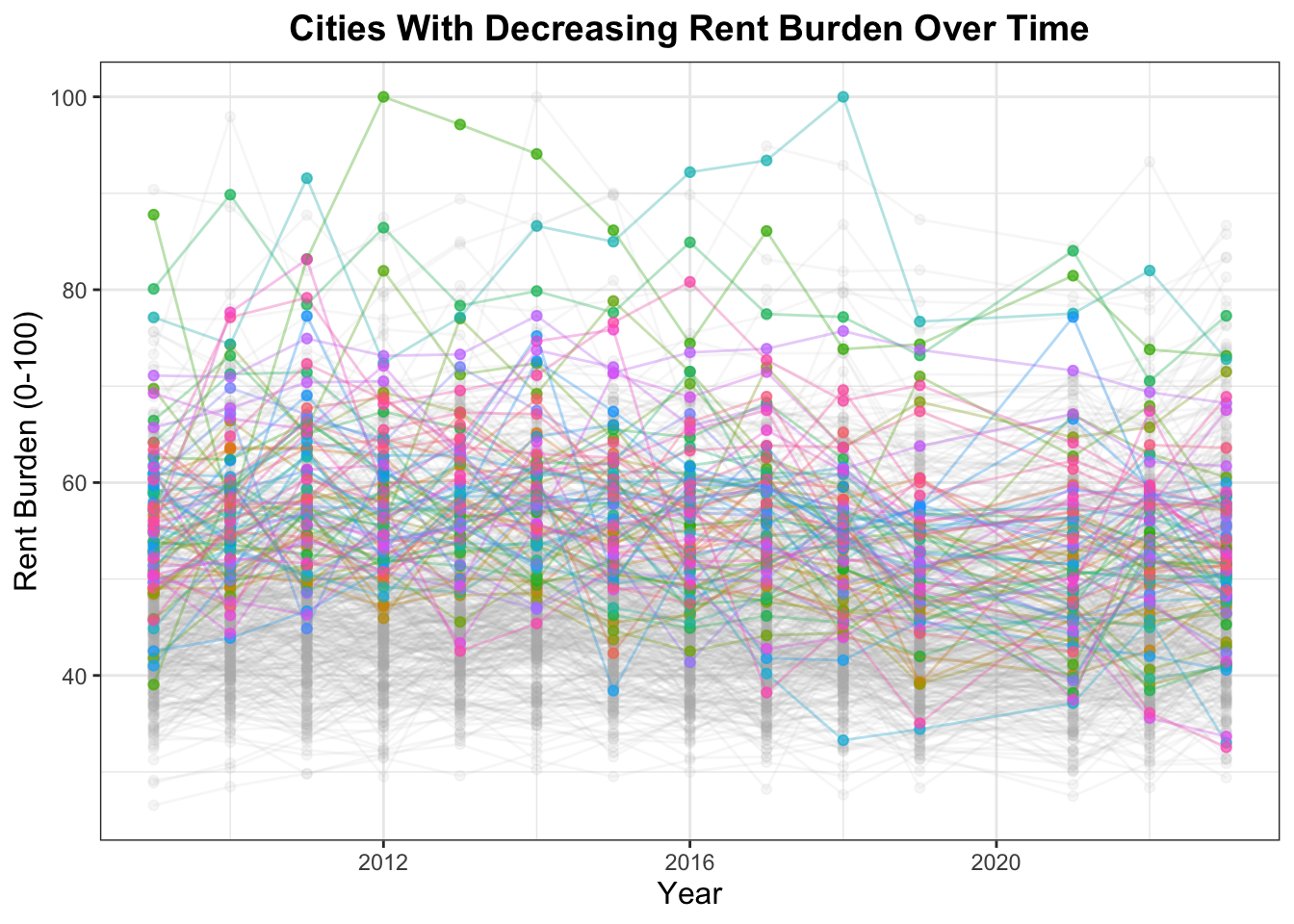

have had a decrease in rent burden over the study period

R Code

# have had a decrease in rent burden over the study period;
change_in_rent_burden_in_later_years <- normal_income_rent |>
  group_by(CBSA, NAME) |>
  arrange(year) |>
  mutate(rent_change = (rent_burden_measure - lag(rent_burden_measure, n=5)) / lag(rent_burden_measure, n=5)) |>
  ungroup() |>
  filter(year %in% c(2014,2023)) |>
  select(CBSA, NAME, year, rent_change) |>
  pivot_wider(names_from = year, values_from = rent_change, names_prefix = "rent_decrease_") |>
  filter(!is.na(rent_decrease_2014), !is.na(rent_decrease_2023)) |>
  select(CBSA, NAME, rent_decrease_2023)
change_in_rent_burden_in_later_years

highest_initial_rent_but_decrease_in_sub_years <- normal_income_rent  |>
  inner_join(change_in_rent_burden_in_later_years, join_by("CBSA" == "CBSA", "NAME" == "NAME")) |>
  filter(CBSA %in% highest_rent_burden_areas_early_in_study$CBSA) |>
  filter(year == 2023, rent_decrease_2023 < 0) |>
  select(-long_term_national_avg, -std_dev_fraction, -z_scores, -household_income, -year)

highest_initial_rent_but_decrease_in_subsequent_years <- highest_initial_rent_but_decrease_in_sub_years |>
  inner_join(highest_rent_burden_areas_early_in_study, join_by("CBSA" == "CBSA", "NAME" == "NAME"))
highest_initial_rent_but_decrease_in_subsequent_years

suppressWarnings({
  ggplot(normal_income_rent, aes(x = year, y = rent_burden_measure, color = NAME)) +
  geom_point(alpha = .7) +
  geom_path(alpha = .3) +
  suppressWarnings(gghighlight(CBSA %in% highest_initial_rent_but_decrease_in_subsequent_years$CBSA,
                               use_direct_label = FALSE,
                               unhighlighted_params = list(alpha = 0.1, color = "gray70"))) +
  xlab("Year") +
  ylab("Rent Burden (0-100)") +
  ggtitle("Cities With Decreasing Rent Burden Over Time") +
  theme_bw() +
  theme(
    legend.position = "none",
    plot.title = element_text(size = 14, face = "bold", hjust = 0.5),
    axis.title = element_text(size = 12),
    strip.text = element_text(size = 10, face = "bold")
  ) + guides(size = guide_legend(title.position = "top"))
})

have had population growth over the study period

R Code

# have had population growth over the study period
population_growth_over_study_period <- population_growth |>
  filter(year >= 2018) |>
  group_by(CBSA, NAME) |>
  mutate(ave_pop_growth = mean(pop_growth_5yrs, na.rm=TRUE))|>
  filter(ave_pop_growth > 0)|>
  ungroup() |>
  filter(year == 2023)
population_growth_over_study_period

ggplot(population_growth, aes(x = year, y = pop_growth_5yrs, color = NAME)) +
  geom_point(alpha = .7) +
  geom_path(alpha = .3) +
  suppressWarnings(gghighlight(CBSA %in% population_growth_over_study_period$CBSA,
                               use_direct_label = FALSE,
                               unhighlighted_params = list(alpha = 0.1, color = "gray70"))) +
  xlab("Year") +
  ylab("Population") +
  ggtitle("Cities With Increasing Population Growth Over Time") +
  theme_bw()+
  theme(
    legend.position = "none",
    plot.title = element_text(size = 14, face = "bold", hjust = 0.5),
    axis.title = element_text(size = 12),
    strip.text = element_text(size = 10, face = "bold")
  ) + guides(size = guide_legend(title.position = "top"))

and have had above-average housing growth during the study period

R Code

# have had above-average housing growth during the study period.
above_average_housing_growth <- composite_scores |>
  pivot_wider(names_from = year, values_from = composite_score, names_prefix = "housing_growth_") |>
  filter(!is.na(housing_growth_2014), !is.na(housing_growth_2023), housing_growth_2023 > 50) |>
  select(CBSA, NAME, housing_growth_2023)
above_average_housing_growth

ggplot(composite_scores, aes(x = year, y = composite_score, color = NAME)) +
  geom_point(alpha = .7) +
  geom_path(alpha = .3) +
  suppressWarnings(gghighlight(CBSA %in% above_average_housing_growth$CBSA,
                               use_direct_label = FALSE,
                               unhighlighted_params = list(alpha = 0.1, color = "gray70"))) +
  xlab("Year") +
  ylab("Composite Score") +
  ggtitle("Cities With Above Average Housing Growth") +
  theme_bw() +
  theme(
    legend.position = "none",
    plot.title = element_text(size = 14, face = "bold", hjust = 0.5),
    axis.title = element_text(size = 12),
    strip.text = element_text(size = 10, face = "bold")
  ) + guides(size = guide_legend(title.position = "top"))

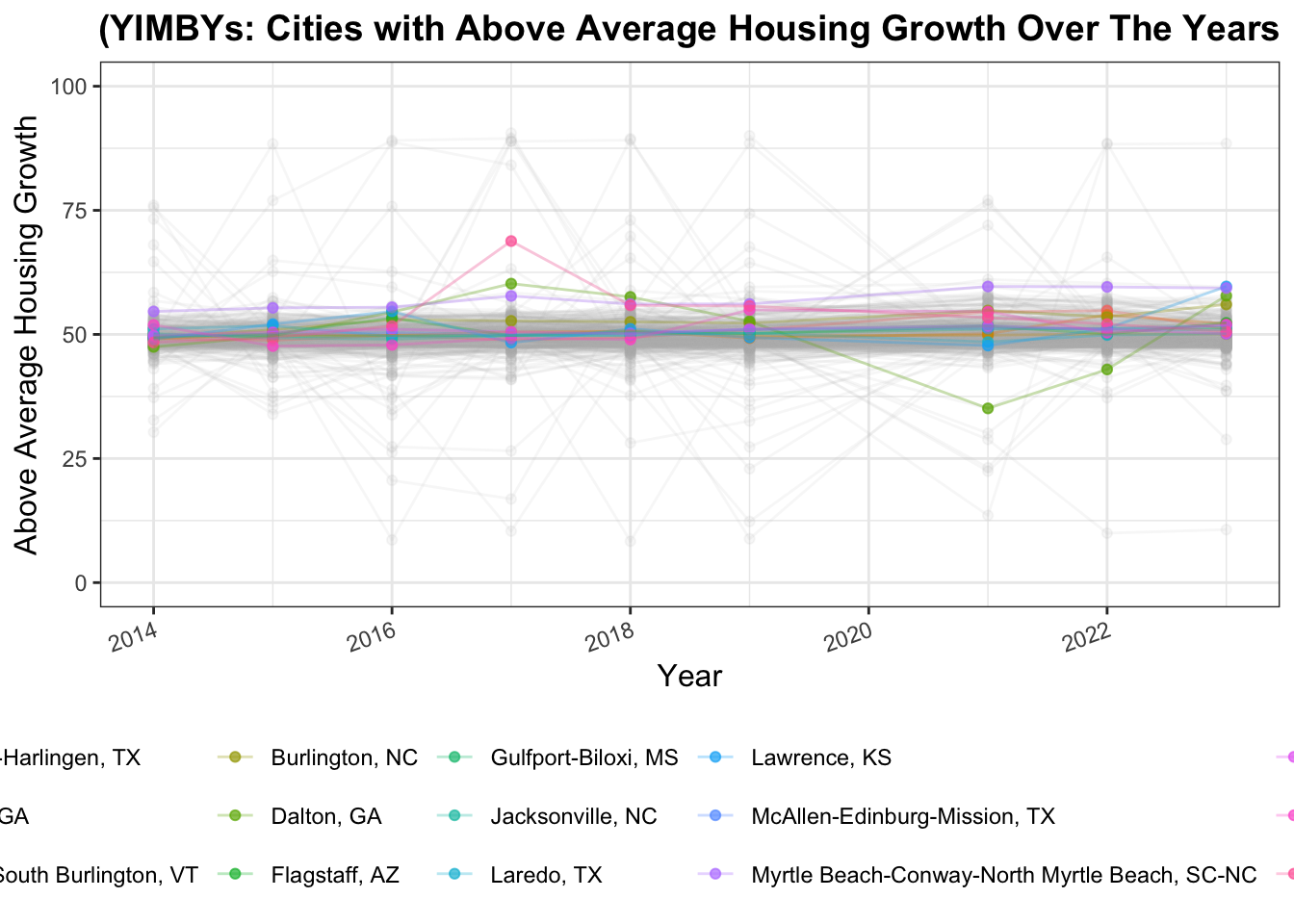

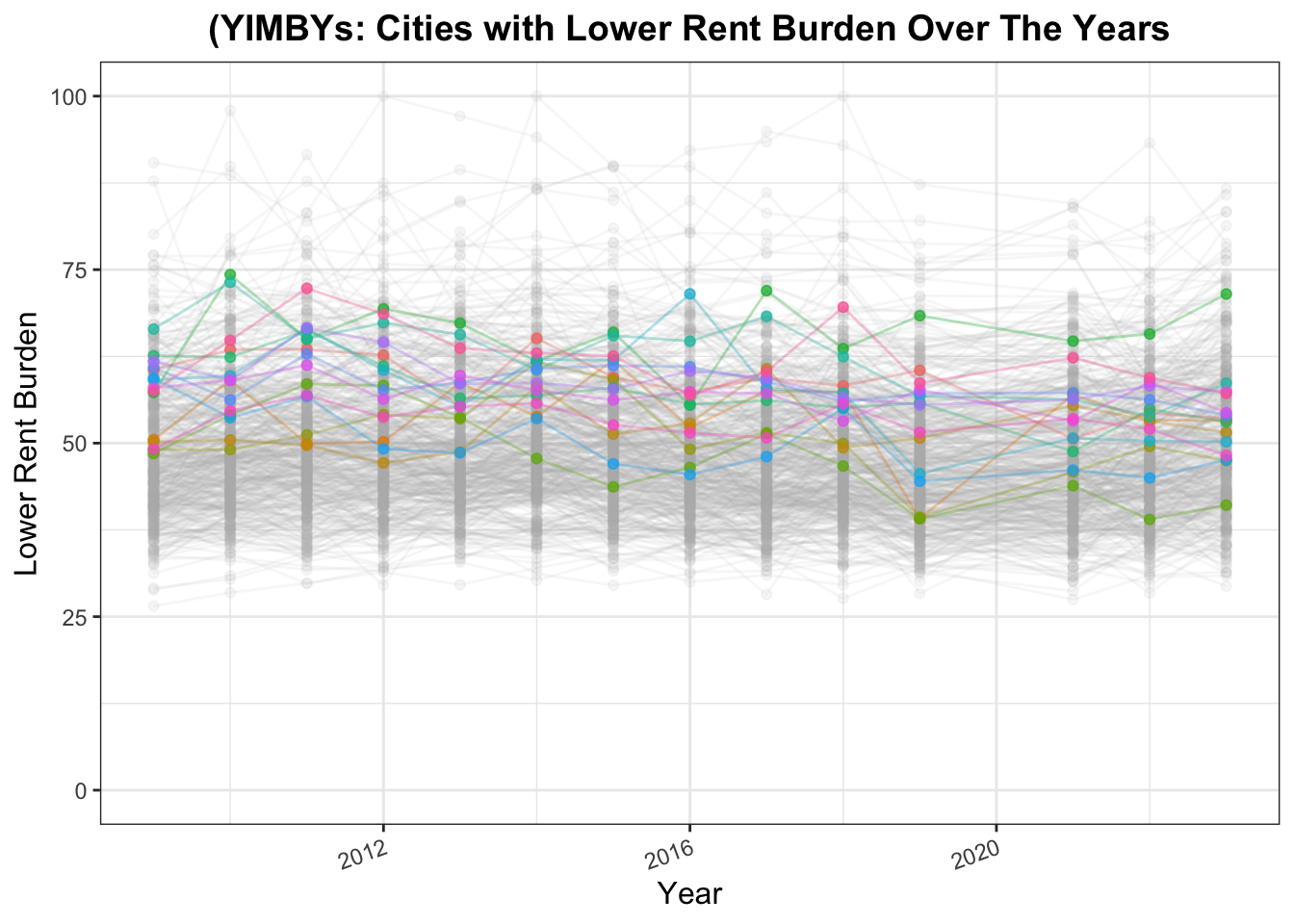

Thus, joining these various qualities will allow us locate examples of YIMBY success!

R Code

# A CBSA exhibiting all of these qualities is (arguably) an example of YIMBY success and is not a city in decline, as would be indicated by falling population resulting in lower rents.
pop_growth_and_above_avg_housing_growth <- inner_join(population_growth_over_study_period, above_average_housing_growth, join_by("CBSA" == "CBSA", "NAME" == "NAME"))

YIMBY <- inner_join(highest_initial_rent_but_decrease_in_subsequent_years, pop_growth_and_above_avg_housing_growth, join_by("CBSA" == "CBSA", "NAME" == "NAME"))

YIMBY  |>
  mutate(
     monthly_rent = round(monthly_rent, 3),
     avg_monthly_income = round(avg_monthly_income, 3),
     rent_fraction = round(rent_fraction, 3),
     rent_burden_measure = round(rent_burden_measure, 3),
     rent_decrease_2023 = round(rent_decrease_2023, 3),
     avg_initial_rent_burden = round(avg_initial_rent_burden, 3),
     pop_growth_5yrs = round(pop_growth_5yrs, 3),
     ave_pop_growth = round(ave_pop_growth, 3),
     housing_growth_2023 = round(housing_growth_2023, 3)) |>
  format_titles() |>
  head(n = 10) |>
  datatable(options = list(searching = FALSE, info = FALSE))

R Code

ggplot(composite_scores, aes(x = year, y = composite_score, color = NAME)) +
  geom_point(alpha = .7) +
  geom_path(alpha = .3) +
  suppressWarnings(gghighlight(CBSA %in% YIMBY$CBSA,
                               use_direct_label = FALSE,
                               unhighlighted_params = list(alpha = 0.1, color = "gray70"))) +
  xlab("Year") +
  #facet_wrap(~ NAME, scales = "fixed") +
  ylim(0, 100) +
  xlab("Year") +
  ylab("Above Average Housing Growth") +
  ggtitle("(YIMBYs: Cities with Above Average Housing Growth Over The Years") +
  theme_bw() +
  theme(legend.position = "bottom",
        plot.title = element_text(size = 14, face = "bold", hjust = 0.5),
        axis.title = element_text(size = 12),
        strip.text = element_text(size = 10, face = "bold"),
        axis.text.x = element_text(angle = 20, hjust = 1))

R Code

ggplot(normal_income_rent, aes(x = year, y = rent_burden_measure, color = NAME)) +
  geom_path(alpha = .3) +
  geom_point(alpha = .7) +
  suppressWarnings(gghighlight(CBSA %in% YIMBY$CBSA,
                               use_direct_label = FALSE,
                               unhighlighted_params = list(alpha = 0.1, color = "gray70"))) +
  ylim(0, 100) +
  xlab("Year") +
  ylab("Lower Rent Burden") +
  ggtitle("(YIMBYs: Cities with Lower Rent Burden Over The Years") +
  theme_bw() +
  theme(legend.position = "none",
        plot.title = element_text(size = 14, face = "bold", hjust = 0.5),
        axis.title = element_text(size = 12),
        strip.text = element_text(size = 10, face = "bold"),
        axis.text.x = element_text(angle = 20, hjust = 1))

R Code

housing_growth_scores <- inner_join(composite_scores, population_growth_over_study_period, join_by("CBSA"=="CBSA", "NAME"=="NAME", "year"=="year")) |>
    select(CBSA, NAME, composite_score, ave_pop_growth)
housing_growth_scores
total <- inner_join(change_in_rent_burden_in_later_years, housing_growth_scores, join_by("CBSA"=="CBSA", "NAME"=="NAME"))

total <- total |>
  mutate(norm_pop_growth = scales::rescale(
    ave_pop_growth,
    to = c(0, 6),          # min/max point size for ggplot
    from = c(0.000243, 0.313)  # actual min/max of your data
  ))

ggplot(total, aes(
  x = rent_decrease_2023,
  y = composite_score,
  size = norm_pop_growth,
  color = CBSA %in% YIMBY$CBSA
)) +
  # highlight YIMBY quadrant (low rent, high growth)
  annotate("rect",
           xmin = -0.4, xmax = 0,
           ymin = 50, ymax = 62,
           alpha = 0.08, fill = "green3") +
  geom_point(alpha = 0.8) +
  scale_size_continuous(range = c(0, 6)) +
  scale_color_manual(values = c("TRUE" = "green3", "FALSE" = "steelblue")) +
  ylim(40, 62) +
  xlim(-0.4, 0.4) +
  labs(
    x = "Rent Change % [Decr:(-), Incr:(+)]",
    y = "Housing Growth Composite Score (0–100)",
    title = "Trajectory Over Time: Rent Burden vs. Housing Growth",
    size = "Normalized Population Growth",
    color = "Highlighted (YIMBY)"
  ) +
  gghighlight(
    CBSA %in% YIMBY$CBSA,
    label_key = NAME,
    use_direct_label = TRUE,
    unhighlighted_params = list(alpha = 0.2, color = "gray60"),
    label_params = list(size = 3.5)
  ) +
  theme_bw() +
  theme(
    plot.title = element_text(size = 14, face = "bold", hjust = 0.5),
    axis.title = element_text(size = 12),
    strip.text = element_text(size = 10, face = "bold")
  ) + guides(size = guide_legend(title.position = "top")) +
  theme(
    legend.position = "bottom",
    legend.title = element_text(size = 8),   # small title font
    legend.text  = element_text(size = 6),   # small label font
    legend.key.size = unit(0.3, "cm"),       # smaller keys
    legend.box = "horizontal"                # layout side by side
  )

Similarly, locating low housing growth and high rent burden qualities will allow us locate examples of NIMBY stagnation:

R Code

# have had a decrease in rent burden over the study period;
increase_in_rent_burden_in_sub_years <- normal_income_rent  |>
  inner_join(change_in_rent_burden_in_later_years, join_by("CBSA" == "CBSA", "NAME" == "NAME")) |>
  filter(CBSA %in% highest_rent_burden_areas_early_in_study$CBSA) |>
  filter(year == 2023, rent_decrease_2023 > 0) |>
  select(-long_term_national_avg, -std_dev_fraction, -z_scores, -household_income, -year)

# have had below average housing growth during the study period.
below_average_housing_growth <- composite_scores |>
  pivot_wider(names_from = year, values_from = composite_score, names_prefix = "housing_growth_") |>
  filter(!is.na(housing_growth_2014), !is.na(housing_growth_2023), housing_growth_2023 < 50) |>
  select(CBSA, NAME, housing_growth_2023)

highest_initial_rent_and_increase_in_subsequent_years <- increase_in_rent_burden_in_sub_years |>
  inner_join(highest_rent_burden_areas_early_in_study, join_by("CBSA" == "CBSA", "NAME" == "NAME"))

pop_growth_but_below_avg_housing_growth <- inner_join(population_growth_over_study_period, below_average_housing_growth, join_by("CBSA" == "CBSA", "NAME" == "NAME"))

NIMBY <- inner_join(highest_initial_rent_and_increase_in_subsequent_years, pop_growth_but_below_avg_housing_growth, join_by("CBSA" == "CBSA", "NAME" == "NAME"))

ggplot(total, aes(
  x = rent_decrease_2023,
  y = composite_score,
  size = norm_pop_growth,
  color = CBSA %in% NIMBY$CBSA
)) +
  # highlight YIMBY quadrant (low rent, high growth)
  annotate("rect",
           xmin = 0, xmax = .4,
           ymin = 40, ymax = 50,
           alpha = 0.08, fill = "red") +
  geom_point(alpha = 0.8) +
  scale_size_continuous(range = c(0, 6)) +
  scale_color_manual(values = c("TRUE" = "red3", "FALSE" = "steelblue")) +
  ylim(40, 62) +
  xlim(-0.4, 0.4) +
  labs(
    x = "Rent Change % [Decr:(-), Incr:(+)]",
    y = "Housing Growth Composite Score (0–100)",
    title = "Trajectory Over Time: Rent Burden vs. Housing Growth",
    size = "Normalized Population Growth",
    color = "Highlighted (NIMBY)"
  ) +
  gghighlight(
    CBSA %in% NIMBY$CBSA,
    label_key = NAME,
    use_direct_label = TRUE,
    unhighlighted_params = list(alpha = 0.2, color = "gray60"),
    label_params = list(size = 3.5)
  ) +
  theme_bw() +
  theme(
    plot.title = element_text(size = 14, face = "bold", hjust = 0.5),
    axis.title = element_text(size = 12),
    strip.text = element_text(size = 10, face = "bold")
  ) + guides(size = guide_legend(title.position = "top")) +
  theme(
    legend.position = "bottom",
    legend.title = element_text(size = 8),   # small title font
    legend.text  = element_text(size = 6),   # small label font
    legend.key.size = unit(0.3, "cm"),       # smaller keys
    legend.box = "horizontal"                # layout side by side
  )

We can observe characteristics of our YIMBY cities more closely:

R Code

# Build summary comparison table from YIMBY and NIMBY data frames
policy_table <- bind_rows(
  YIMBY |>
    transmute(
      Type = "YIMBY",
      City = NAME,
      `Rent Burden (%)` = sprintf("%.1f ↓", rent_burden_measure),
      `Housing Growth (Index)` = sprintf("%.1f ↑", housing_growth_2023),
      `Pop. Growth (5 yrs)` = sprintf("+%.1f%%", ave_pop_growth * 100),
      `Rent Change (2023)` = sprintf("%.2f%%", rent_decrease_2023 * 100)
    ),
  NIMBY |>
    transmute(
      Type = "NIMBY",
      City = NAME,
      `Rent Burden (%)` = sprintf("%.1f ↑", rent_burden_measure),
      `Housing Growth (Index)` = sprintf("%.1f ↓", housing_growth_2023),
      `Pop. Growth (5 yrs)` = sprintf("+%.1f%%", ave_pop_growth * 100),
      `Rent Change (2023)` = sprintf("+%.2f%%", rent_decrease_2023 * 100)
    )
)

# Render nicely as an interactive datatable
datatable(
  policy_table,
  caption = "YIMBY Cities",
  options = list(
    pageLength = 10,
    dom = 't',   # show only the table, no filter/search/pagination
    ordering = FALSE,
    scrollX = TRUE
  ),
  rownames = FALSE,
  class = "cell-border stripe hover compact"
)

Policy Brief

As part of the national YIMBY pack, we propose a federal incentive program to encourage local municipalities to adopt more-(YIMBY) set of housing policies that promote growth, affordability, and labor stability for our citizens.

To secure bipartisan support, we recommend identifying two congressional sponsors:
- A primary sponsor from a city with clear YIMBY success (rapid housing growth and falling rent burden).
- A co-sponsor from a city showing NIMBY stagnation (low housing growth and high rent burden).

Our analysis compares the hometowns of our congressional sponsors:

The ideal YIMBY city, Myrtle Beach, SC shows robust housing expansion and a decline in rent burden, while the NIMBY city of Abilene TX experiences tight supply and accelerating rents.

Type	City	Rent Burden (%)	Housing Growth (Index)	Pop. Growth (5 yrs)	Rent Change (2023)
YIMBY	Myrtle Beach, SC	57.4 ↓	59.3 ↑	+12.1%	−3.37%
NIMBY	Abilene, TX	63.5 ↑	48.7 ↓	+4.8%	+34.1%

Recommended Bill Sponsors

Primary Sponsor: Representative from Myrtle Beach, SC — representing a success story in balanced population and housing growth.
Co-Sponsor: Representative from Abilene, TX — where limited housing growth and surging rent burdens highlight the need for federal incentives.

Together, they illustrate how local policy differences shape affordability and economic opportunity.

Coalition Support: Target Occupations

We recommend seeking endorsements from unions and professional groups in sectors directly impacted by housing affordability:

R Code

#Have a non-trivial number of employees in YIMBY city
YIMBYest_cities <- YIMBY |>
  arrange(desc(ave_pop_growth), desc(housing_growth_2023), rent_decrease_2023)
YIMBYest_cities
YIMBYest_city <- YIMBYest_cities |> slice(1) |> select(CBSA, NAME) |> mutate(std_cbsa = paste0("C", CBSA))
YIMBYest_city
#t2 <- WAGES |> mutate(std_cbsa = paste0(FIPS, "0"))

top_occupations_YIMBYest_city <- t2 |>
  filter(std_cbsa == YIMBYest_city$std_cbsa) |>
  filter(year == 2023) |>
  group_by(INDUSTRY) |>
  arrange(desc(EMPLOYMENT)) |>
  ungroup() |>
  slice_max(EMPLOYMENT, n=10)
top_occupations_YIMBYest_city

top_occupations_YIMBYest_city <- inner_join(top_occupations_YIMBYest_city, INDUSTRY_CODES, join_by("INDUSTRY" == "level1_code")) |>
  distinct(EMPLOYMENT, TOTAL_WAGES, AVG_WAGE, level1_title)

top_occupations_YIMBYest_city

NIMBYest_cities <- NIMBY |>
  arrange(desc(rent_decrease_2023), housing_growth_2023, desc(ave_pop_growth))
NIMBYest_cities
NIMBYest_city <- NIMBYest_cities |> slice(1) |> select(CBSA, NAME) |> mutate(std_cbsa = paste0("C", CBSA))
NIMBYest_city

#Have a non-trivial number of employees in NIMBY city
top_occupations_in_NIMBYest_city <-  t2 |>
  filter(std_cbsa == NIMBYest_city$std_cbsa) |>
  filter(year == 2023) |>
  group_by(INDUSTRY) |>
  arrange(desc(EMPLOYMENT)) |>
  ungroup() |>
  slice_max(EMPLOYMENT, n=11)

top_two_occupations_in_NIMBYest_city  <- inner_join(top_occupations_in_NIMBYest_city , INDUSTRY_CODES, join_by("INDUSTRY" == "level1_code")) |>
  distinct(EMPLOYMENT, TOTAL_WAGES, AVG_WAGE, level1_title)

top_two_occupations_in_NIMBYest_city

City	Key Occupations	Employment	Avg. Wage ($/yr)	Why They Benefit
Myrtle Beach (YIMBY)	Accommodation & Food Services	37,071	27,060	Lower rents allow service workers to stay local, stabilizing tourism and hospitality sectors.
	Health Care & Social Assistance	19,148	61,440	Affordable housing supports essential workforce retention.
Abilene (NIMBY)	Accommodation & Food Services	7,528	21,627	Rent pressure limits hiring in hospitality and support industries.
	Admin. & Support Services	3,878	59,633	High housing costs increase turnover and reduce disposable income.

These sectors are politically powerful and represent large voting blocs in both regions. They also stand to gain directly from housing affordability reforms, either through lower living costs or greater consumer spending.

Metric Overview (Non-Technical)

Rent Burden Measure:
Represents the percentage of household income spent on rent. Lower values indicate improved affordability and financial security.

Housing Growth Index:
Captures the relative pace of new housing construction or availability over time. Higher values reflect active development and better supply–demand balance.

Population Growth:
Indicates demographic vitality and local economic opportunity. Positive growth paired with stable rents suggests successful housing policy.

Policy Argument

Federal YIMBY incentives work.
When housing supply grows faster than rent burdens, working families benefit, local economies stabilize, and employers face fewer workforce shortages.

The proposed legislation would reward municipalities that demonstrate:
1. Increasing housing supply,
2. Decreasing rent burdens, and
3. Sustained population growth.

Funding could take the form of infrastructure grants, low-interest construction loans, or zoning reform assistance, ensuring that cities like Abilene can replicate Myrtle Beach’s success story.

Final Insights

Overall, this has been a marvelous data science project exploring housing affordability and abrogating for more YIMBY-friendly housing policies.

This work ©2025 by socoyjonathan was initially prepared as a Mini-Project for STA 9750 at Baruch College. More details about this course can be found at the course site and instructions for this assignment can be found at MP #02
